EVF G2 Front Load 15"
EVF1152S43PIBE
BUILT TO TAKE THE WEATHER.

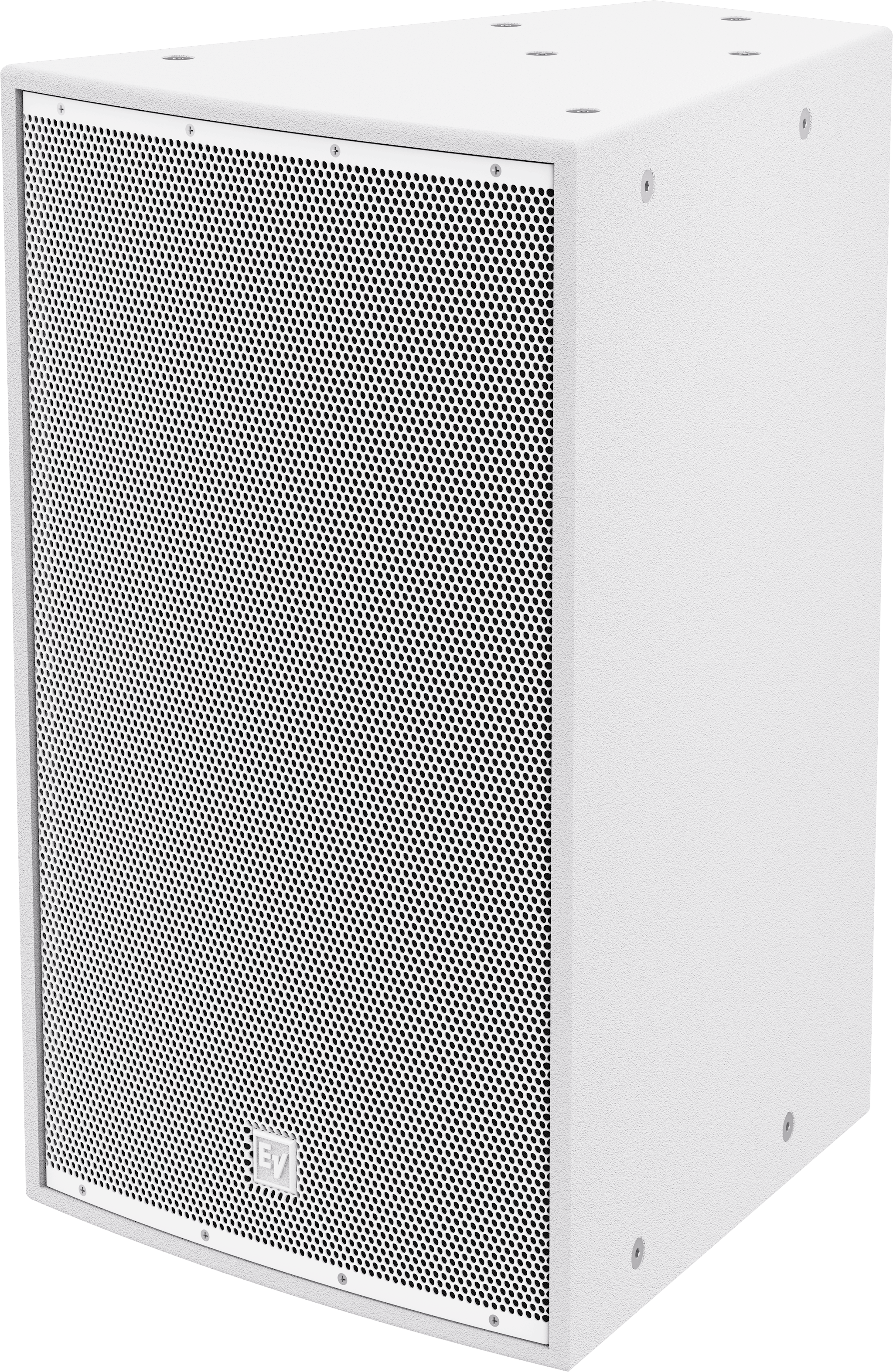

The weatherized 40°×30° EVF-1152S/43 — the same install workhorse, sealed for the elements.
Take the install outside and keep the spec. This weatherized EVF-1152S/43 runs an ND2B 2" titanium compression driver on a 40°×30° constant-directivity waveguide over an FEA-optimized SMX2151 15" woofer, in a weather-resistant birch enclosure coated with EVCoat. The input panel takes gland-nut covers so the connections survive outdoors. Arrays with the EVF and EVH series — 7 horn patterns, plus low-frequency and subwoofer cabinets — so one weatherized inventory covers a large range of venues.
Key features
Made for outdoors
weather-resistant birch enclosure coated with EVCoat.
Seal the connections
input panel accepts gland-nut weatherizing covers.
Tight throw
40°×30° constant-directivity waveguide holds pattern at distance.
Smooth voices
24 dB/octave crossover tuned for the vocal range, with a protection circuit.
One kit, many rooms
arrays with EVF and EVH cabinets across 7 horn patterns.
Stainless where it counts
a stainless-steel grille shrugs off full exposure to the outdoor elements.
Features
Wash a wide room with full-range, full-bodied sound. The EVF-15/99 opens to a square 90° by 90° pattern over a 15-inch low end — broad near-field coverage with weight behind it. It carries the full EVF G2 redesign: new in-house EV transducers, low-loss crossovers, EV's highest-performance HF horns, and flat-phase FIR presets under 10 ms. Wide low-ceiling rooms, clubs, multipurpose halls that need real bottom — short throw, wide spread, no thin spots. IP55 with the cover for outdoor installs.
- Wide square 15 — 90° by 90° pattern with 15-inch low-end weight.
- Built new for G2 — in-house EV transducers and low-loss crossovers.
- Tight timing — flat-phase FIR presets with under 10 ms of system latency.
- Two-way full range — redesigned high-output 15-inch for broad rooms.
- Weather-ready — IP55 rating with the moisture-resistant cover fitted.
Specifications
Acoustic Performance
- Frequency Response
1k
- Frequency Range (-10 dB)
40 Hz - 20 kHz
- Coverage angle (V)
40
- Coverage Angle
90 × 90
Transducers & Drivers
- LF transducer size (in)
15
Power & Amplification
- Power handling (continuous) (W)
400
