EVC-1152-95 15" speaker 90x55
EVC-1152-95 15" speaker 90x55

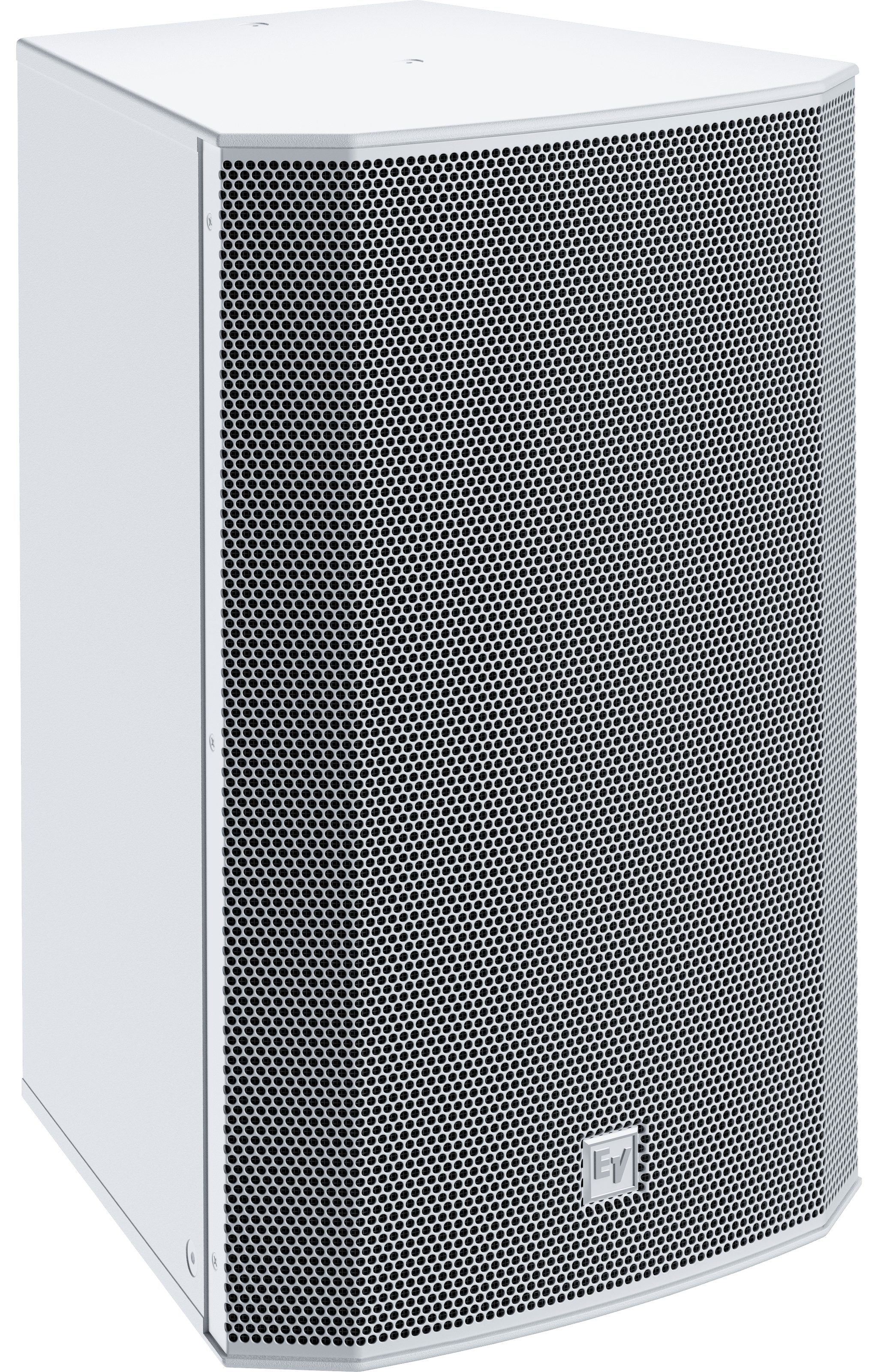

A weatherized 15-inch two-way install loudspeaker in white with wide 90-by-55 coverage.
Features
Wide, high output outdoors, in a finish that blends with a bright facade. The EVC-1152-95PIW drives a 15-inch EVS-15M woofer through a 1.25-inch titanium-dome compression driver on a rotatable 90-by-55-degree waveguide for broad coverage. An IP-rated white enclosure with a hydrophobic stainless grille shrugs off weather, and a 1.6 kHz fourth-order Linkwitz-Riley crossover keeps vocals tight. Resort plazas, white-stucco concourses, fairgrounds, transport platforms — set it wide and let it work outside.
- Wide and powerful — rotatable waveguide spreads 90-by-55-degree coverage from a 15-inch woofer.
- Weatherized in white — EVCoat enclosure and hydrophobic stainless grille blend with bright facades.
- Definition holds off-axis — 1.6 kHz fourth-order Linkwitz-Riley crossover for smooth coverage.
- 70V/100V ready — add the TK-150 and patented ASC keeps low end stable across the line.
- Rig with confidence — multiple M10 points, optional U-bracket or pan-and-tilt mount, inputs to 10 AWG.
Specifications
Acoustic Performance
- Frequency Response
70 Hz - 21 kHz
- Frequency Range (-10 dB)
50 Hz - 25 kHz
- Coverage Angle
90 × 55
Transducers & Drivers
- LF transducer size (in)
EVS-15M
Impedance
- Nominal Impedance
8Ω
- Minimum Impedance
6.7
