EVC-1122-VIWTEN54 12 speaker VI XFRM white EN54 Datasheet
EVC-1122-VIWTEN54
EVEN COVERAGE. CERTIFIED.

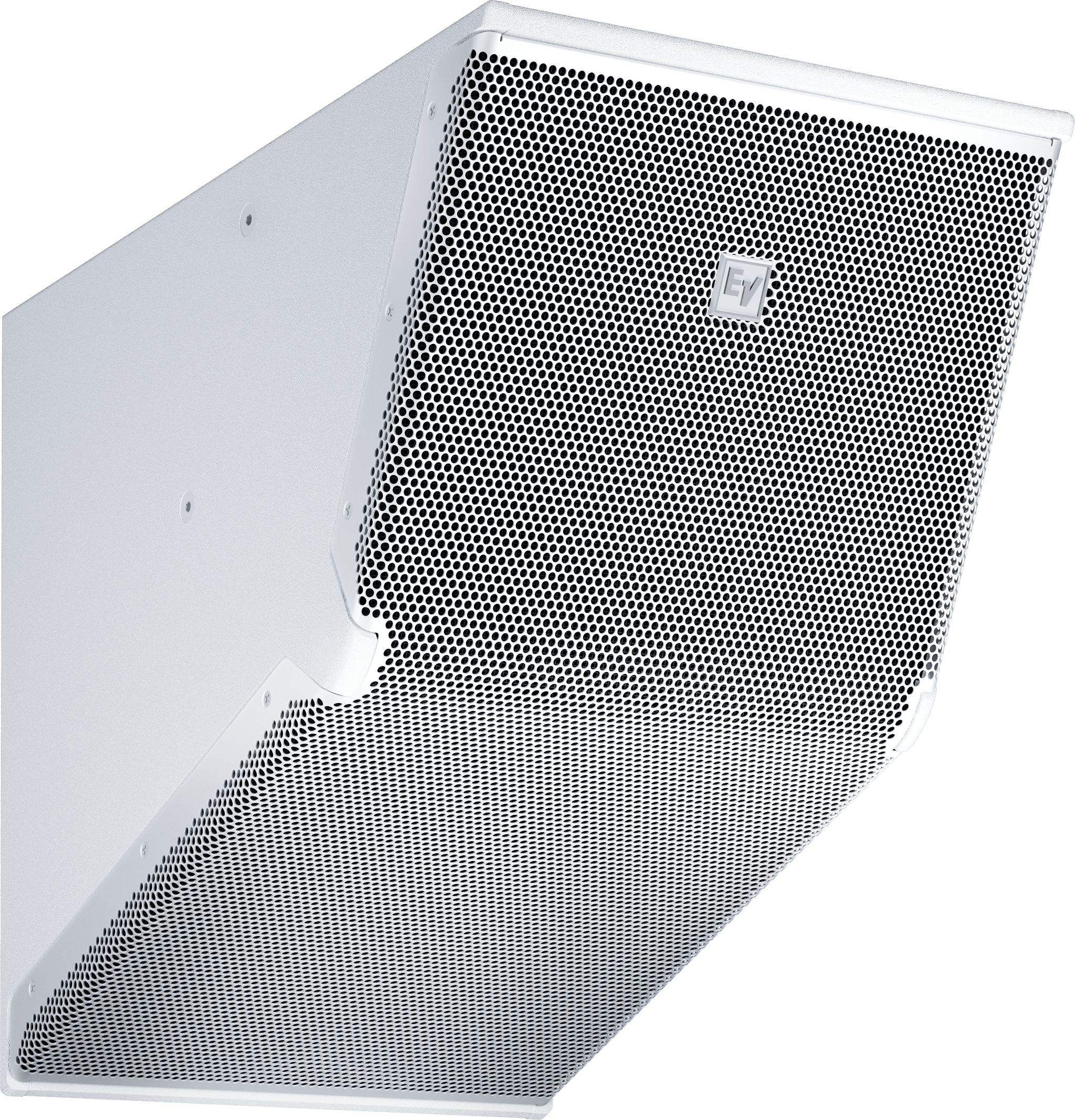

An EN54-24 variable-intensity 12-inch loudspeaker in white, TK-150 transformer preinstalled.
EVC-1122-VIWTEN54 12 speaker VI XFRM white EN54 Datasheet
An EN54-24 variable-intensity 12-inch loudspeaker in white, TK-150 transformer preinstalled.
Even coverage, the certification, and a finish that vanishes overhead. The EVC-1122-VIWTEN54 ships EN54-24 compliant with the Electro-Voice TK-150 transformer already fitted, ready for a 70V/100V voice-alarm line. Its variable-intensity design holds level across a long rectangular space from one point, and patented ASC preserves low end across every box on the line. White-ceiling worship spaces, transit halls, campus buildings — one loudspeaker for music, speech, and life-safety.
Key features
Certified out of the box
EN54-24 compliant with the TK-150 audio transformer preinstalled.
Even level, front to back
variable-intensity coverage of a defined rectangle from one loudspeaker.
Bass that holds on the line
patented ASC keeps low end stable across paralleled 70V/100V boxes.
Music and speech both land
12-inch EVS-12M woofer and 1.25-inch titanium-dome driver, 1.6 kHz crossover.
Disappears overhead
weather-resistant EVCoat enclosure in white, three M10 points, inputs to 10 AWG.
Clean at high output
computer-optimized high-output woofer delivers low distortion and high efficiency.
Features
Even coverage, the certification, and a finish that vanishes overhead. The EVC-1122-VIWTEN54 ships EN54-24 compliant with the Electro-Voice TK-150 transformer already fitted, ready for a 70V/100V voice-alarm line. Its variable-intensity design holds level across a long rectangular space from one point, and patented ASC preserves low end across every box on the line. White-ceiling worship spaces, transit halls, campus buildings — one loudspeaker for music, speech, and life-safety.
- Certified out of the box — EN54-24 compliant with the TK-150 audio transformer preinstalled.
- Even level, front to back — variable-intensity coverage of a defined rectangle from one loudspeaker.
- Bass that holds on the line — patented ASC keeps low end stable across paralleled 70V/100V boxes.
- Music and speech both land — 12-inch EVS-12M woofer and 1.25-inch titanium-dome driver, 1.6 kHz crossover.
- Disappears overhead — weather-resistant EVCoat enclosure in white, three M10 points, inputs to 10 AWG.
Specifications
Acoustic Performance
- Max SPL
100.5
- Frequency Response
70 Hz - 20 kHz
- Frequency Range (-10 dB)
50 Hz - 25 kHz
- Sensitivity
79 dB (1 W/4 m)
- Sensitivity (1W/1m)
79 dB (1 W/4 m)
Transducers & Drivers
- LF transducer size (in)
EVS-12M
