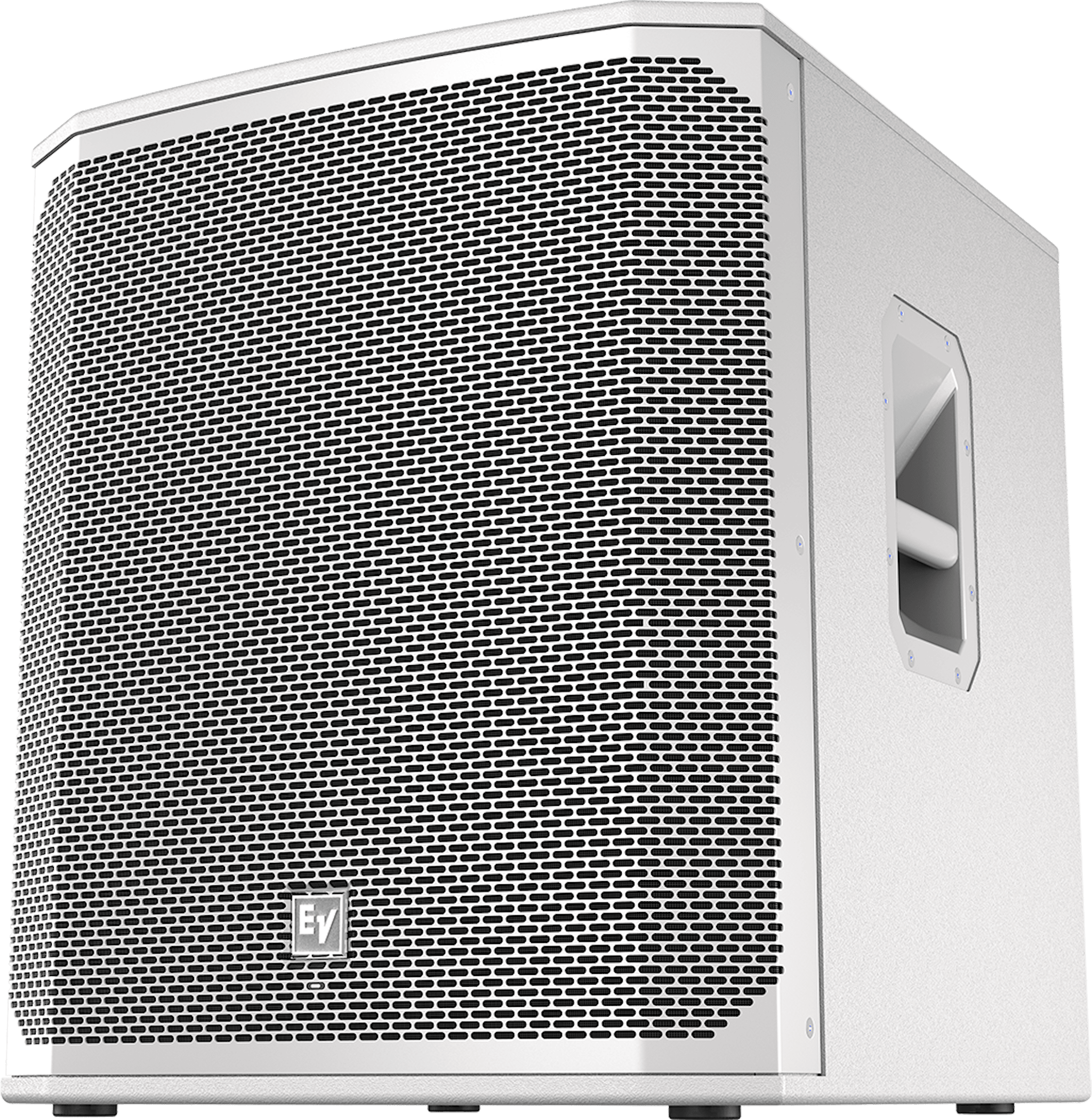

ELX200-18SP
ELX200-18SP
An 18-inch powered subwoofer with 1,200 W of Class-D power and phone-based DSP.
Features
Anchor the whole system from one box. The ELX200-18SP drives a custom EVS-18L 18-inch woofer with up to 1,200 W of Class-D power and QuickSmartDSP, reaching up to 132 dB max SPL. Set the low-pass at 80, 100, 120, or 150 Hz, pick Music, Live, or Club, and save five of your own presets. QuickSmart Mobile over Bluetooth LE tunes up to six speakers from out front. Festival stage, club, large worship room — deep low end you control from the floor.
- Move serious air — up to 1,200 W Class-D drives the EVS-18L to a max 132 dB SPL.
- Match the room — selectable 80, 100, 120, or 150 Hz low-pass plus Music, Live, and Club presets.
- Control it from out front — QuickSmart Mobile over Bluetooth LE manages up to six speakers.
- Run it safe — onboard limiter monitoring protects the system at full output.
- Move it solo — integrated M20 pole-mount plate and two-handle design on a 15 mm wood box.
Specifications
Transducers & Drivers
- Element Type
EVS-18L 457 mm (18 in)
Power & Amplification
- Powered
true
- Power Handling
1200 W
- Power consumption (W)
100 - 240 V~, 50 - 60 Hz, 1.2 0.6 A
Connectivity & I/O
- Connectivity
(2) XLR/TRS combo jacks and (2) XLR link outputs
Construction & Materials
- Enclosure
15 mm plywood with EVCoat
