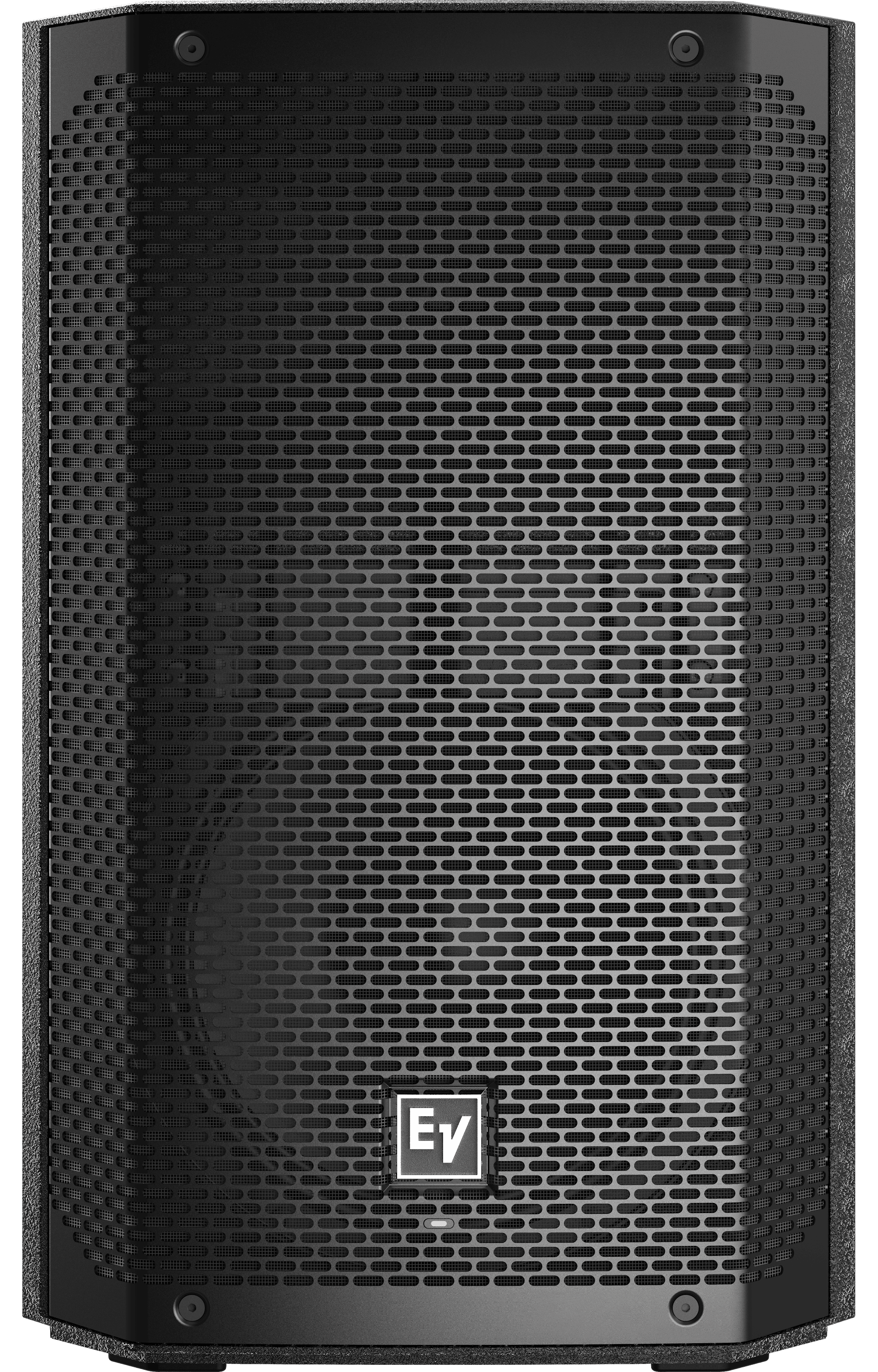

ELX200-10P 10" 2-Way Powered Speaker
Details
Powered Loudspeaker

Set It Down. Sound Check Done.

A powered 10-inch two-way with QuickSmartDSP and wireless control on your phone.
Loading

ELX200-10P 10" 2-Way Powered Speaker

A powered 10-inch two-way with QuickSmartDSP and wireless control on your phone.
Documentation & Downloads

Plug in, pick a preset, and you are dialed. The ELX200-10P drives an EV-engineered 10-inch EVS-10M woofer and a DH-1L 1-inch titanium compression driver with up to 1,200 W of Class-D power for up to 130 dB SPL. QuickSmartDSP brings four presets, system-match crossovers, three-band EQ, and limiting to the rear panel, and the QuickSmart App controls up to six boxes over Bluetooth. Mobile DJ, band, house of worship: control your sound from out front.

Key Features

Strong, Clean Output
up to 130 dB SPL from a 1,200 W Class-D amplifier.
Control From the Crowd
QuickSmart App manages up to six speakers over Bluetooth.
Tune It on Board
four presets, three-band EQ, system-match crossovers, and limiting.
EV-Engineered Sound
EVS-10M 10-inch woofer with a DH-1L 1-inch titanium driver.
Easy to Carry and Rig
light polypropylene cabinet with the proven ZLX handle design.
Mount It Permanently
three M10 threaded mounting points built into the cabinet.

Features

Plug in, pick a preset, and you are dialed. The ELX200-10P drives an EV-engineered 10-inch EVS-10M woofer and a DH-1L 1-inch titanium compression driver with up to 1,200 W of Class-D power for up to 130 dB SPL. QuickSmartDSP brings four presets, system-match crossovers, three-band EQ, and limiting to the rear panel, and the QuickSmart Mobile app controls up to six boxes over Bluetooth. Mobile DJ, band, house of worship — control your sound from out front.
  • Strong, clean output — up to 130 dB SPL from a 1,200 W Class-D amplifier.
  • Control from the crowd — QuickSmart Mobile manages up to six speakers over Bluetooth.
  • Tune it on board — four presets, three-band EQ, system-match crossovers, and limiting.
  • EV-engineered sound — EVS-10M 10-inch woofer with a DH-1L 1-inch titanium driver.
  • Easy to carry and rig — light polypropylene cabinet with the proven ZLX handle design.

Specifications

Acoustic Performance

Max SPL

130

Frequency Response

59 Hz -18 kHz

Frequency Range (-10 dB)

53 Hz - 20 kHz

Coverage Angle

90 × 60

Transducers & Drivers

LF transducer size (in)

10

Element Type

DH-1L 1-inch titanium compression driver
