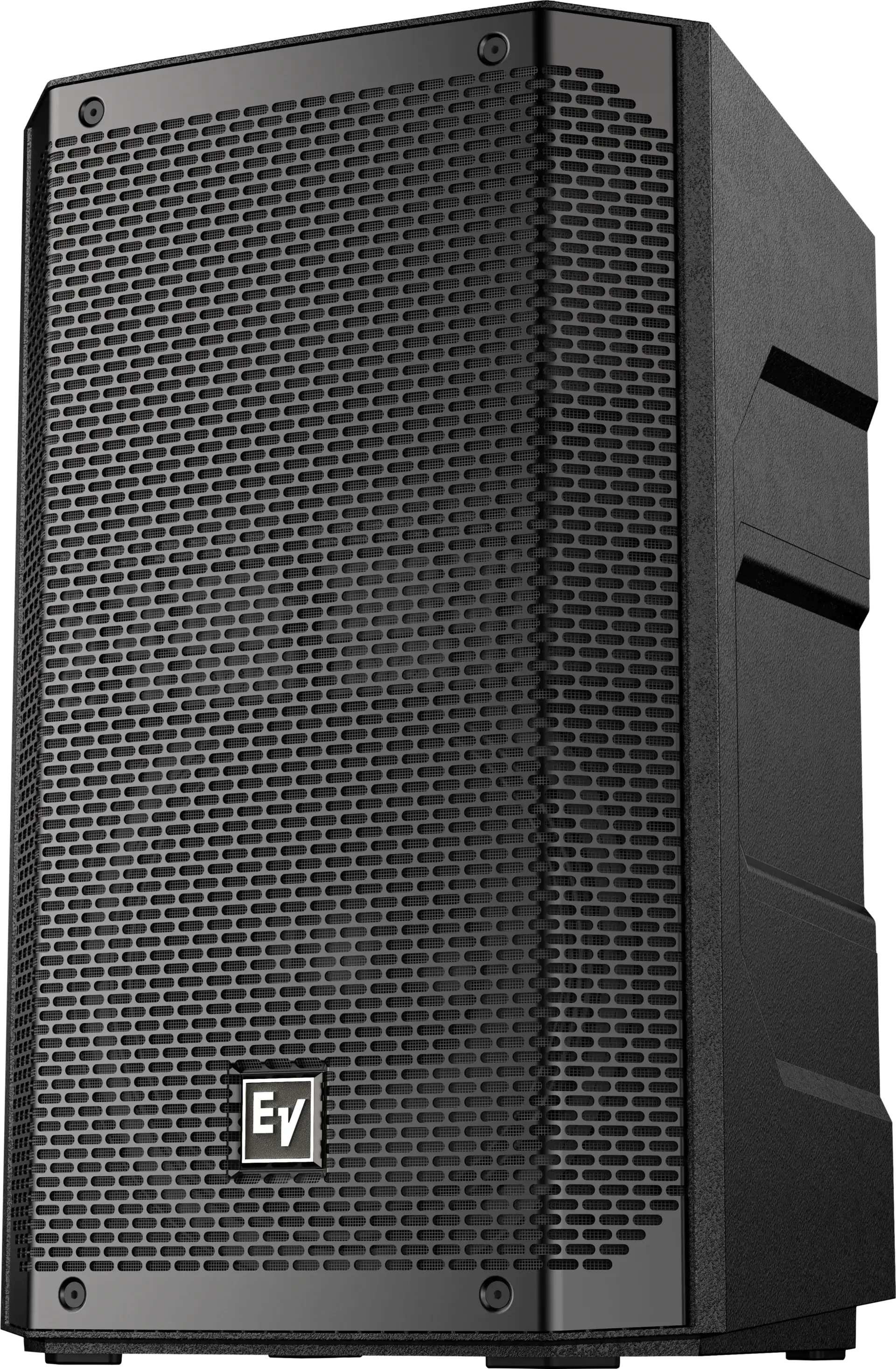

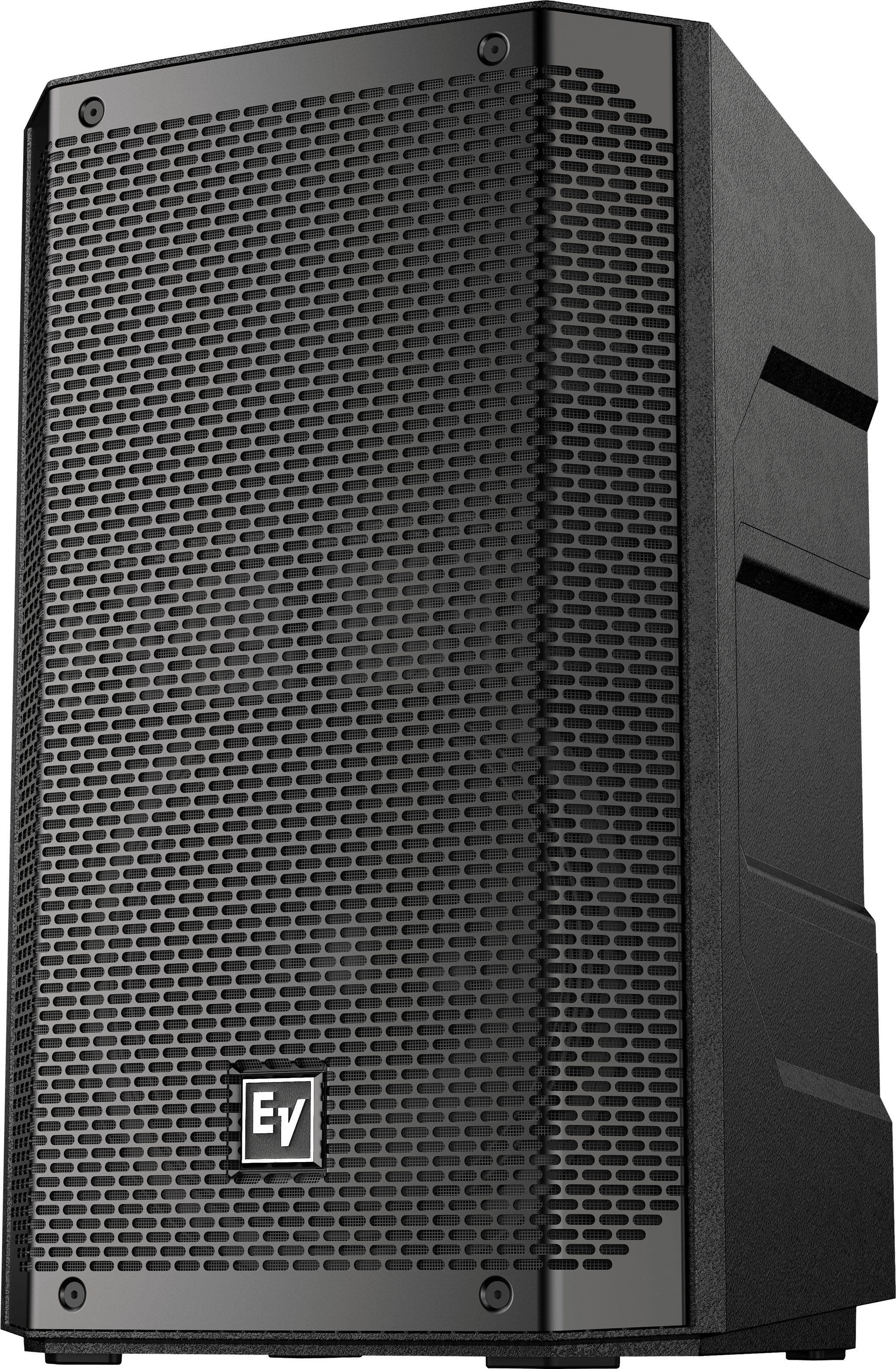

ELX200-10 10" 2-Way Passive Speaker
Passive Loudspeaker
Tough. Loud. Portable.
A passive 10-inch two-way built as the new benchmark for portable toughness.
ELX200-10 10" 2-Way Passive Speaker
A passive 10-inch two-way built as the new benchmark for portable toughness.
Throw it in the van, set it up, and trust it to hold. The ELX200-10 is a passive 10-inch two-way with all-new EV-engineered components, tested far beyond the industry norm and tuned to stay accurate and linear right up to the limit. A 15 mm braced-plywood enclosure and premium top-coat finish take real-world abuse in stride. Mobile gig, small stage, house of worship, install: loud and clear, every load-in.
Key Features
Loud and Clear to the Limit
accurate, linear response at the system's highest output.
Built to Take Abuse
components tested far beyond the industry norm.
Road-Ready Cabinet
15 mm braced plywood with a premium top-coat finish.
EV-Engineered Components
designed and tested in-house for meaningful specs.
Compact and Portable
a true 10-inch workhorse for stage or install.
Carries the SST Waveguide
Signal Synchronized Transducers waveguide concept, shared across the EV portable family.
Features
Throw it in the van, set it up, and trust it to hold. The ELX200-10 is a passive 10-inch two-way with all-new EV-engineered components, tested far beyond the industry norm and tuned to stay accurate and linear right up to the limit. A 15 mm braced-plywood enclosure and premium top-coat finish take real-world abuse in stride. Mobile gig, small stage, house of worship, install — loud and clear, every load-in.
- Loud and clear to the limit — accurate, linear response at the system's highest output.
- Built to take abuse — components tested far beyond the industry norm.
- Road-ready cabinet — 15 mm braced plywood with a premium top-coat finish.
- EV-engineered components — designed and tested in-house for meaningful specs.
- Compact and portable — a true 10-inch workhorse for stage or install.
Specifications
Acoustic Performance
- Max SPL
127
- Frequency Response
65 Hz - 20 kHz
- Frequency Range (-10 dB)
49 Hz - 22 kHz
- Coverage Angle
90 × 60
- Sensitivity
90 dB
- Sensitivity (1W/1m)
90 dB
