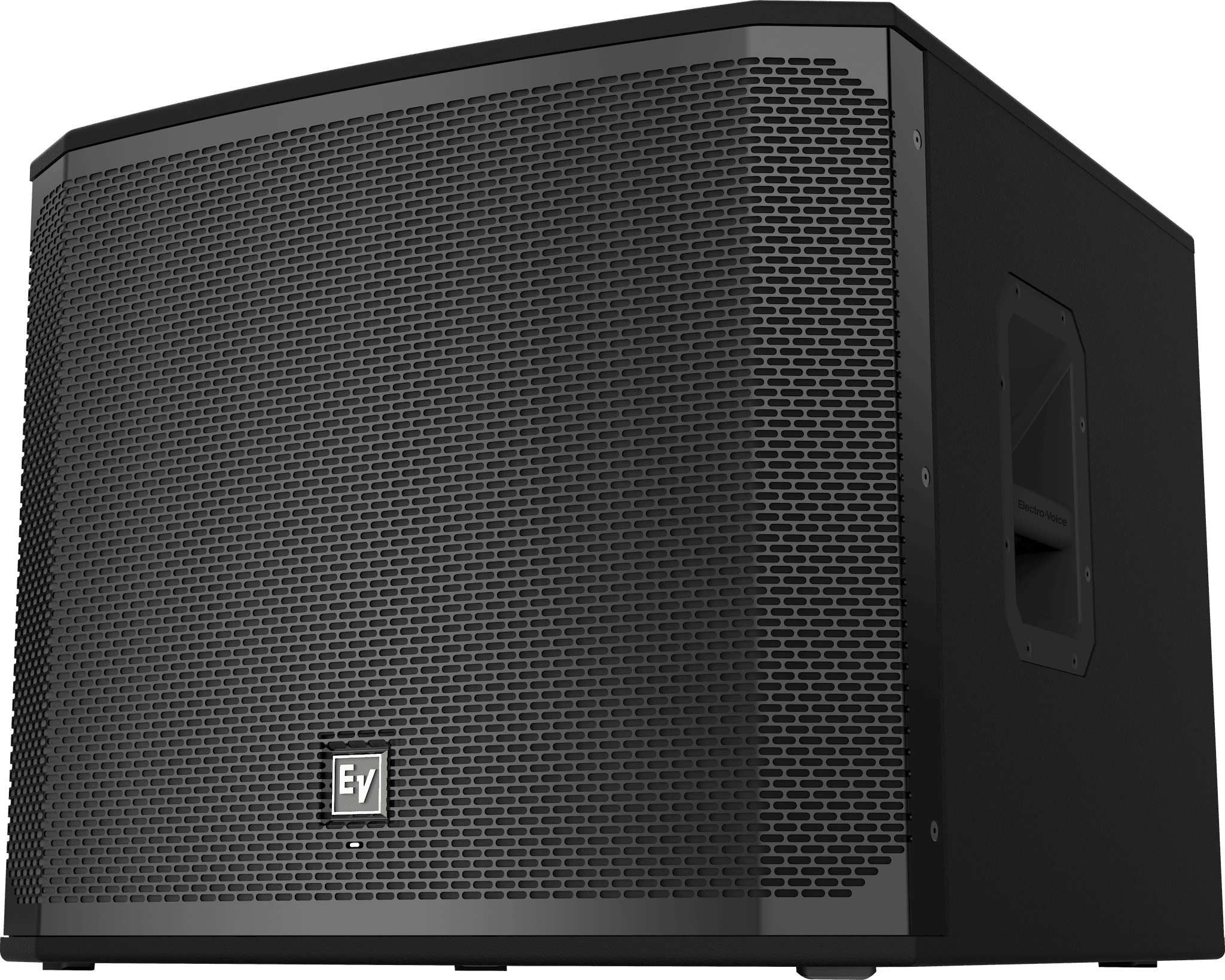

EKX-18SP Powered 18" Subwoofer
EKX-18SP Powered 18" Subwoofer
A powered 18-inch subwoofer with QuickSmartDSP and cardioid control for the biggest rooms.
Move the air, keep the stage clean. The EKX-18SP reaches up to 134 dB SPL from an EV-engineered EVS-18C 18-inch driver and up to 1,300 W of Class-D power, with integrated QuickSmartDSP for presets, system-match crossovers, and limiting. Cardioid Control Technology, adapted from EV touring systems, steers output toward the audience with up to 35 dB of rejection on stage when multiple subs are deployed. Festival, large venue, house of worship, install: deep low end with directional control.
Key Features
Deep, Commanding Low End
up to 134 dB SPL from a 1,300 W Class-D amplifier.
Direct the Bass
Cardioid Control Technology cuts up to 35 dB on stage with multiple subs.
Set It Fast
QuickSmartDSP presets, system-match crossovers, and limiting on board.
EV-Engineered Sound
an 18-inch EVS-18C subwoofer driver for maximum output.
Runs Cool Under Load
intelligent thermal management with a variable-speed fan.
Pole-Mount and Go
M20 threaded pole mount plate, with all-metal handles for the move.
Features
Move the air, keep the stage clean. The EKX-18SP reaches up to 134 dB SPL from an EV-engineered EVS-18C 18-inch driver and up to 1,300 W of Class-D power, with integrated QuickSmartDSP for presets, system-match crossovers, and limiting. Cardioid Control Technology, adapted from EV touring systems, steers output toward the audience with up to 35 dB of rejection on stage when multiple subs are deployed. Festival, large venue, house of worship, install — deep low end with directional control.
- Deep, commanding low end — up to 134 dB SPL from a 1,300 W Class-D amplifier.
- Direct the bass — Cardioid Control Technology cuts up to 35 dB on stage with multiple subs.
- Set it fast — QuickSmartDSP presets, system-match crossovers, and limiting on board.
- EV-engineered sound — an 18-inch EVS-18C subwoofer driver for maximum output.
- Runs cool under load — intelligent thermal management with a variable-speed fan.
Specifications
Acoustic Performance
- Max SPL
134
- Frequency Response
40 Hz - 150 Hz¹
- Frequency Range (-10 dB)
35 Hz - 180 Hz¹
Transducers & Drivers
- LF transducer size (in)
EVS-18C 457 mm (18 in)
- Woofer Size
EVS-18C 457 mm (18 in)
Power & Amplification
- Powered
true
