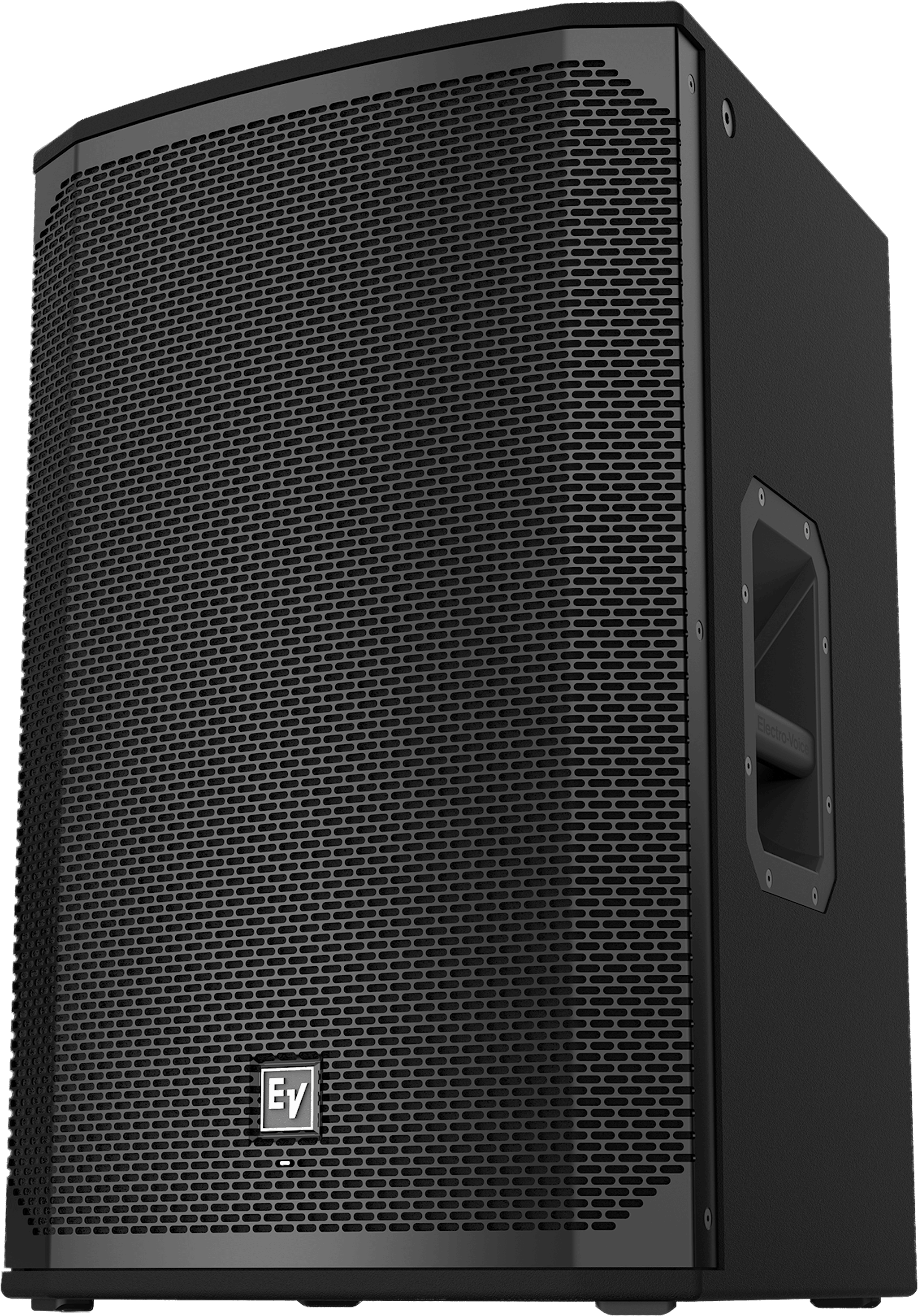

EKX-15P 15" 2-way powered speaker
EKX-15P 15" 2-way powered speaker
A powered 15-inch two-way with QuickSmartDSP and up to 134 dB SPL on tap.
Stand it up, choose a preset, and the room is yours. The EKX-15P pairs an EV-engineered EVS-15M 15-inch woofer and a DH-1M 1-inch titanium compression driver with a 1,500 W Class-D amp for up to 134 dB SPL, across 90 x 60 coverage. Onboard QuickSmartDSP puts presets, crossovers, and limiting on the rear panel, and intelligent thermal management keeps it composed all night. Band, mobile DJ, house of worship, install: power and control in one cabinet.
Key Features
Serious Headroom
Up to 134 dB SPL from a 1,500 W Class-D amplifier.
Coverage You Can Count On
90 x 60 pattern shaped by the patented SST waveguide.
Tune It Fast
Integrated QuickSmartDSP presets, crossovers, and limiting on the rear panel.
EV-Engineered Sound
EVS-15M 15-inch woofer with a DH-1M 1-inch titanium compression driver.
Built to Run
Intelligent thermal management with a variable-speed fan keeps output steady.
Any Gig, One Box
Band, mobile DJ, house of worship, install: power and control in one cabinet.
Features
Stand it up, choose a preset, and the room is yours. The EKX-15P pairs an EV-engineered EVS-15M 15-inch woofer and a DH-1M 1-inch titanium compression driver with a 1,500 W Class-D amp for up to 134 dB SPL, across 90 x 60 coverage. Onboard QuickSmartDSP puts presets, crossovers, and limiting on the rear panel, and intelligent thermal management keeps it composed all night. Band, mobile DJ, house of worship, install — power and control in one cabinet.
- Serious headroom — up to 134 dB SPL from a 1,500 W Class-D amplifier.
- Coverage you can count on — 90 x 60 pattern shaped by the patented SST waveguide.
- Tune it fast — integrated QuickSmartDSP presets, crossovers, and limiting on the rear panel.
- EV-engineered sound — EVS-15M 15-inch woofer with a DH-1M 1-inch titanium compression driver.
- Built to run — intelligent thermal management with a variable-speed fan keeps output steady.
Specifications
Acoustic Performance
- Max SPL
134
- Frequency Response
55 Hz - 18 kHz
- Frequency Range (-10 dB)
48 Hz - 20 kHz
- Coverage Angle
90 × 60
Transducers & Drivers
- LF transducer size (in)
DH-1M 1-inch titanium compression driver
- Woofer Size
EVS-15M 381 mm (15 in)
