EKX-15 Passive 15" 2-Way Speaker
EKX-15 Passive 15" 2-Way Speaker

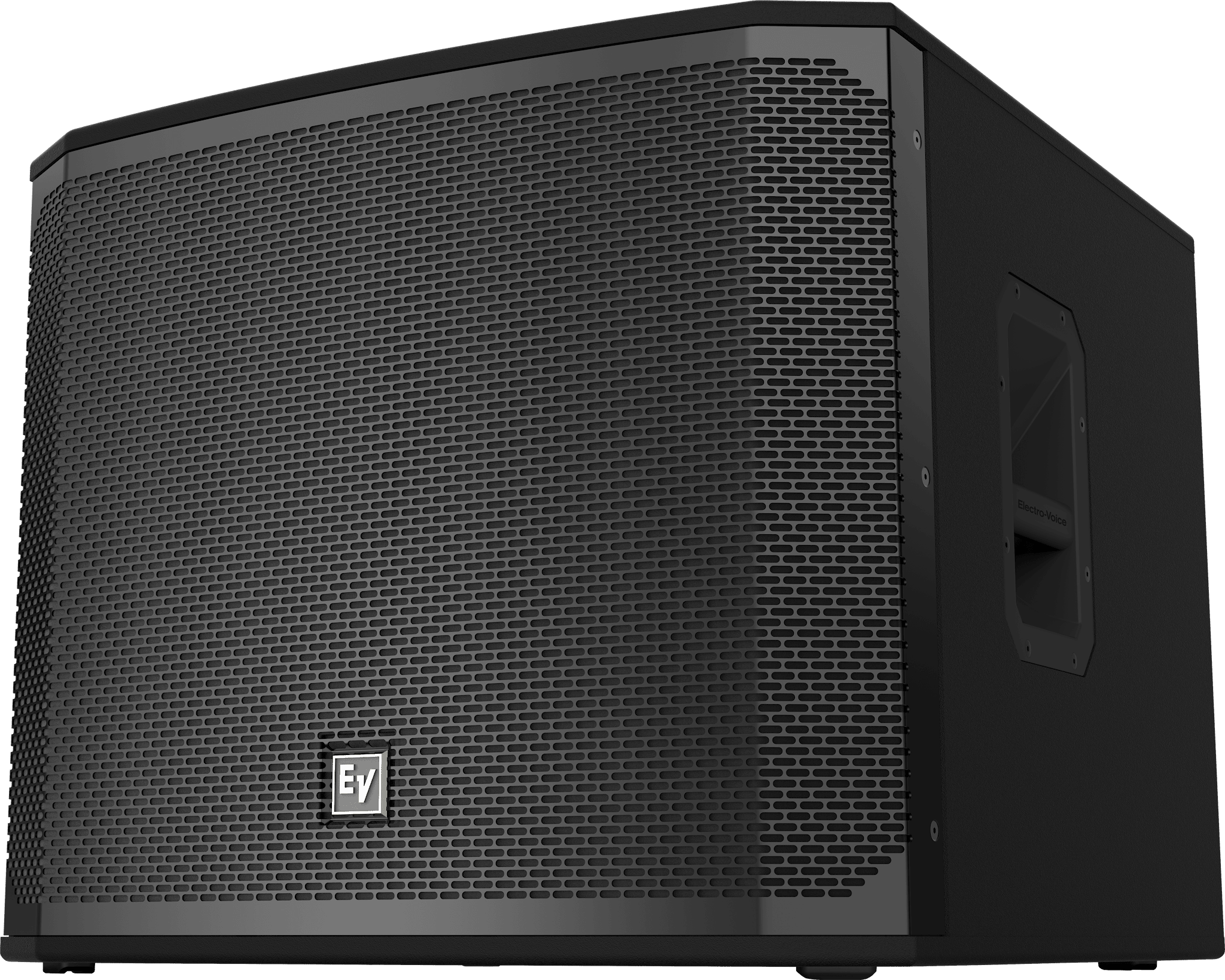

A passive 18-inch subwoofer for the deepest, most physical low end in the EKX family.
When the room is big and the music needs to be felt, reach for eighteen inches. The EKX-18S lays a passive 18-inch low-frequency foundation under your EKX tops, built into a 15 mm braced-plywood enclosure with a durable EVCoat finish, an M20 pole socket, and all-metal handles. System-match crossovers on the powered EKX models tie the sub and tops together. Festival stage, large worship space, club, install: deep, physical bass that fills the space.
Key Features
Maximum Low-End Weight
an 18-inch sub for the largest EKX rigs.
Matched to Your Tops
crossovers cleanly with powered EKX full-range models.
Built for the Road
15 mm braced plywood with a durable EVCoat finish.
Easy to Deploy
M20 pole socket and all-metal handles.
Completes the System
the deepest foundation in the EKX portable lineup.
From Festival to Install
at home on festival stages, in large worship spaces, clubs, and installs.
Features
When the room is big and the music needs to be felt, reach for eighteen inches. The EKX-18S lays a passive 18-inch low-frequency foundation under your EKX tops, built into a 15 mm braced-plywood enclosure with a durable EVCoat finish, an M20 pole socket, and all-metal handles. System-match crossovers on the powered EKX models tie the sub and tops together. Festival stage, large worship space, club, install — deep, physical bass that fills the space.
- Maximum low-end weight — an 18-inch sub for the largest EKX rigs.
- Matched to your tops — crossovers cleanly with powered EKX full-range models.
- Built for the road — 15 mm braced plywood with a durable EVCoat finish.
- Easy to deploy — M20 pole socket and all-metal handles.
- Completes the system — the deepest foundation in the EKX portable lineup.
Specifications
Acoustic Performance
- Max SPL
134
- Frequency Response
50 Hz - 100 Hz
- Frequency Range (-10 dB)
35 Hz - 300 Hz
- Sensitivity (1W/1m)
96 dB
Transducers & Drivers
- LF transducer size (in)
EVS-18C 457 mm (18 in)
- Woofer Size
EVS-18C 457 mm (18 in)
