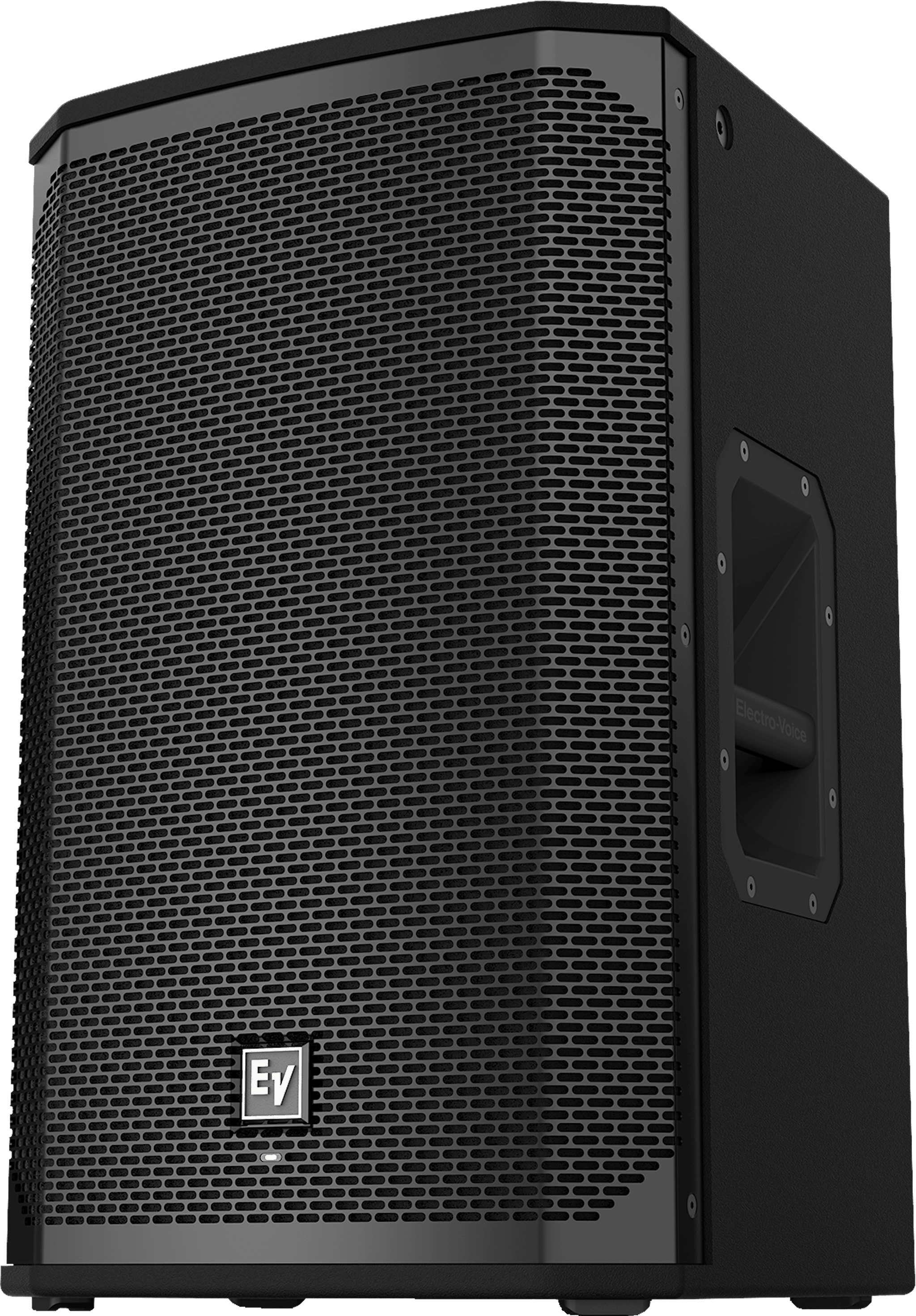

EKX-12P 12" 2-way powered speaker
EKX-12P 12" 2-way powered speaker
A powered 12-inch two-way with QuickSmartDSP, ready for the gig the moment you set it down.
Set it on a pole and you are ready to play. The EKX-12P drives an EV-engineered EVS-12M woofer and a DH-1M 1-inch titanium compression driver with a 1,500 W Class-D amp, for up to 132 dB SPL. Onboard QuickSmartDSP gives you presets, system-match crossovers, and limiting from the rear panel, and intelligent thermal management keeps it steady through a long night. Mobile DJ, band, house of worship, install: the show goes wherever you do.
Key Features
Big, Clean Output
up to 132 dB SPL from a 1,500 W Class-D amplifier.
Tune It on the Spot
integrated QuickSmartDSP presets, crossovers, and limiting on the rear panel.
EV-Engineered Sound
EVS-12M woofer paired with a DH-1M 1-inch titanium compression driver.
Runs Cool, Runs Long
intelligent thermal management with a variable-speed fan.
Controlled Coverage
patented SST waveguide keeps the pattern tight and the sound honest.
Pole It and Play
set it on a pole and you are ready to play.
Features
Set it on a pole and you are ready to play. The EKX-12P drives an EV-engineered EVS-12M woofer and a DH-1M 1-inch titanium compression driver with a 1,500 W Class-D amp, for up to 132 dB SPL. Onboard QuickSmartDSP gives you presets, system-match crossovers, and limiting from the rear panel, and intelligent thermal management keeps it steady through a long night. Mobile DJ, band, house of worship, install — the show goes wherever you do.
- Big, clean output — up to 132 dB SPL from a 1,500 W Class-D amplifier.
- Tune it on the spot — integrated QuickSmartDSP presets, crossovers, and limiting on the rear panel.
- EV-engineered sound — EVS-12M woofer paired with a DH-1M 1-inch titanium compression driver.
- Runs cool, runs long — intelligent thermal management with a variable-speed fan.
- Controlled coverage — patented SST waveguide keeps the pattern tight and the sound honest.
Specifications
Acoustic Performance
- Max SPL
132
- Frequency Response
60 Hz - 18 kHz
- Frequency Range (-10 dB)
50 Hz - 20 kHz
- Coverage Angle
90 × 60
Transducers & Drivers
- LF transducer size (in)
DH-1M 1 in titanium compression driver
- Woofer Size
EVS-12M 300 mm (12 in)
