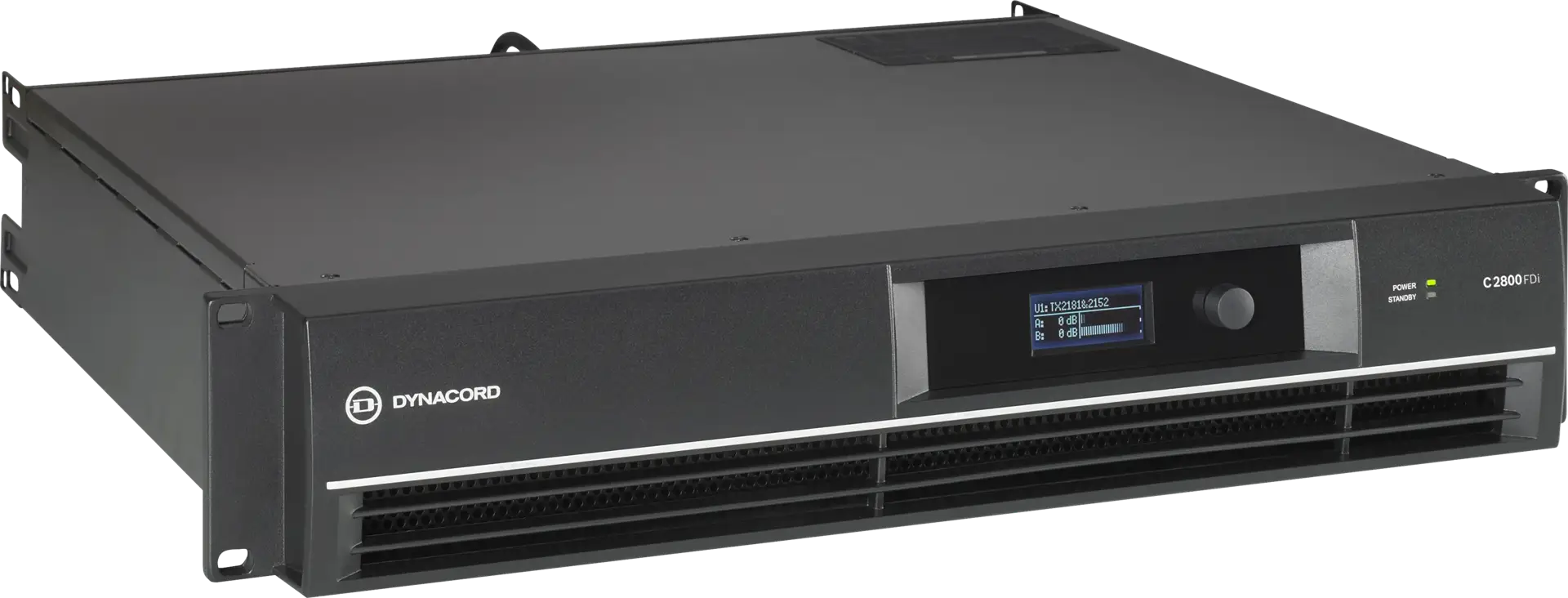

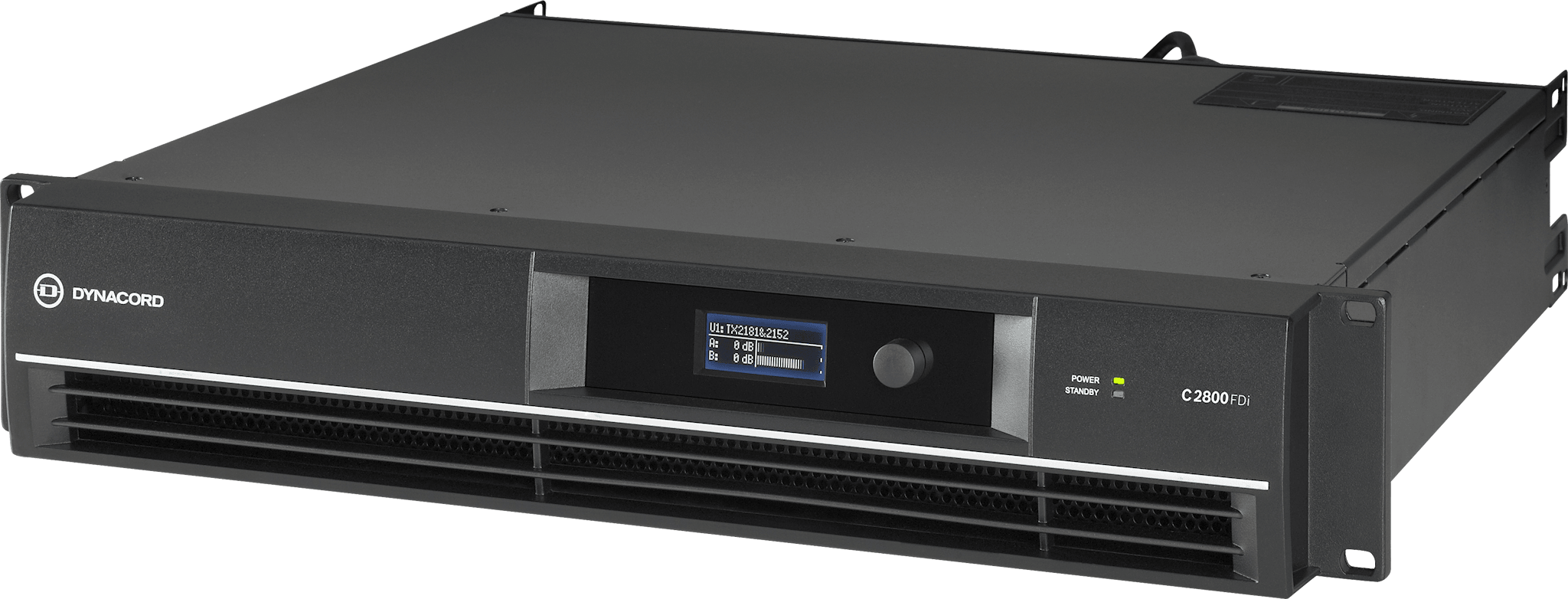

C2800FDi DSP power amplifier, install
C2800FDI
CLASS-H POWER, INSTALL-TUNED.
A 2 x 1400 W Class-H install amplifier with FIR drive for high-output fixed systems.
C2800FDi DSP power amplifier, install
A 2-channel install DSP power amplifier rated 2 x 1400 W, with integrated FIR Drive speaker processing, controlled in SONICUE, Euroblock connections.
Bring real output to a permanent system and keep it efficient. The C2800FDi runs a 2 x 1400 W Class-H output stage — efficiency that earns its rack space — with the C-Series install DSP: FIR filters, per-channel PEQ, output delay, and load-impedance monitoring. Direct-drive 70 V/100 V feeds distributed lines, and the protection suite and three-stage cooling hold it steady under sustained load. Auditoriums, large worship rooms, and multipurpose halls get power and precision from one 2 RU box.
Key features
Power with efficiency
2 x 1400 W from a Class-H output stage.
Tune the install
FIR filters, PEQ per channel, and output delay onboard.
Drive distributed lines
direct-drive 70 V/100 V output, transformerless.
Watch the load
load-impedance monitoring plus full protection limiters.
Hold under load
front-to-rear three-stage fans in a 19-inch, 2 RU chassis.
Mains sorted at the factory
configured for 240, 230, 120, or 100 V mains, 50 to 60 Hz.
Two-channel power amplifiers
L Series and C Series Amplifiers
Complete the System
Where this unit fits, and what it pairs with.
Features
The install version of the L platform. The C2800FDi delivers 2 x 1400 W into 4 ohm with fully integrated FIR Drive, sets up and supervises in SONICUE (USB), connects on Euroblock with GPIO for remote power and preset control. It drives 70 V direct drive and low-impedance loads. Three-stage front-to-rear fans and a full protection suite keep it running in the rack. Two rack units. Retail, hospitality, corporate, houses of worship, and fixed installs that want touring-grade processing built in.
- Install power: 1400 W per channel into 4 ohm with integrated FIR Drive processing.
- Low-impedance operation for 2/4/8 ohm speaker systems, 70V/100V direct drive
- Set up in SONICUE (USB):levels, EQ, speaker settings with FIR filters, PEQ, delay, and limiters.
- Install-ready connections: Euroblock in/out and GPIO for remote power and preset select.
- Reliable in the rack: full protection suite with 3-stage front-to-rear cooling.
Specifications
Overview & Features
- Configuration
2-channel
Acoustic Performance
- Frequency Response
10 Hz to 21 kHz (±1 dB)
- THD+N
< 0.05 %
- Crosstalk between channels (dBA)
< -80 dB
- Signal-to-Noise Ratio
>107 dB
Power & Amplification
- Total Output Power*
2800 W
