Naimuang Station, Chai Nat, Thailand

One system for daytime diners and nighttime live shows

Naimuang Station is a leading regional restaurant in Chai Nat, Thailand, known for its live music scene. Management set out to raise the audio experience across the venue: professional sound quality, coverage contained inside the property, great sound at low daytime levels, and a system the staff can manage with ease.

Case Study
Hospitality
Electro-Voice
Dynacord
Asia

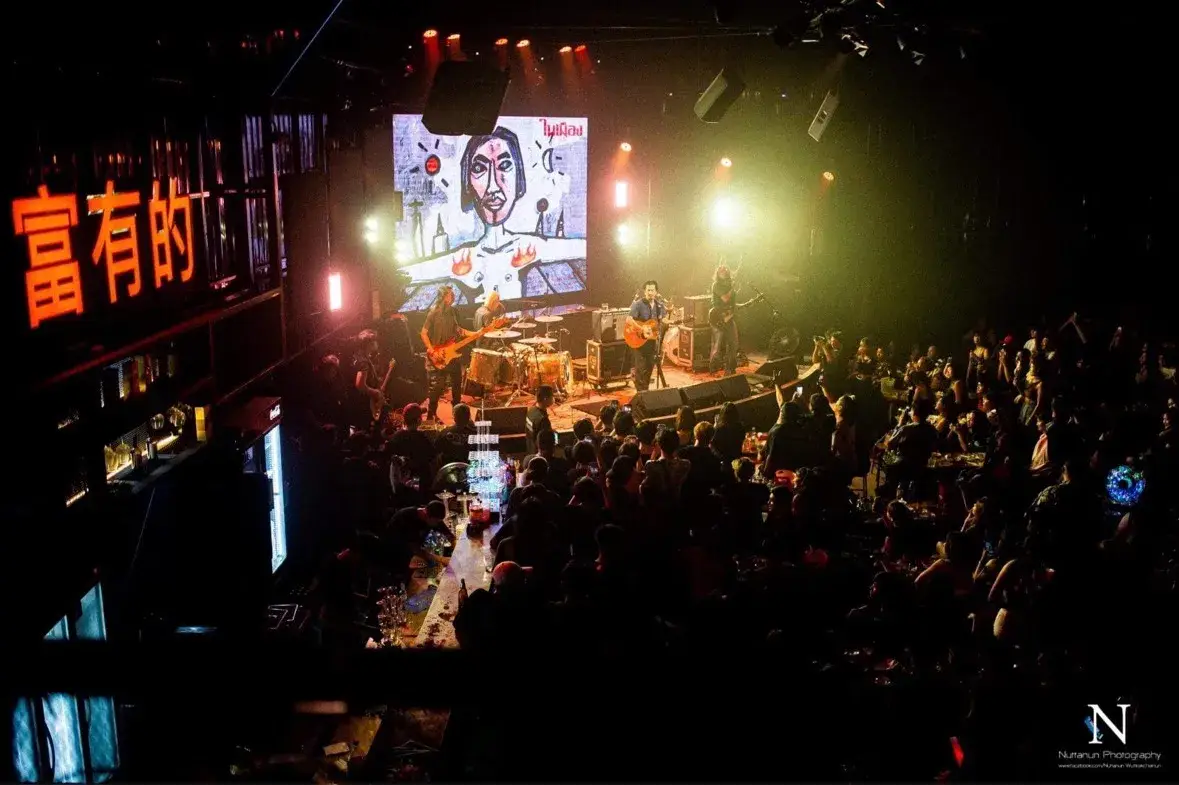

2023-EV-DC-NaimuangStation_01
Venue
Naimuang Station
Location
Chai Nat, Thailand
Install partner
Product highlights
Electro-Voice EKX, ZLX · Dynacord L Series
The venue

A restaurant known for its live music scene

Naimuang Station in Chai Nat, Thailand, is a leading regional restaurant with a reputation built on live music. By day the room serves diners with background music. By night it becomes a live venue with full shows on stage.

The restaurant's management was determined to elevate the audio experience to match. Sound quality was only the start: coverage had to stay controlled, keeping output contained in the venue and minimizing noise pollution into neighboring properties. The system also needed to sound great at lower volumes for daytime guests, and be reliable and easy for the staff to manage.

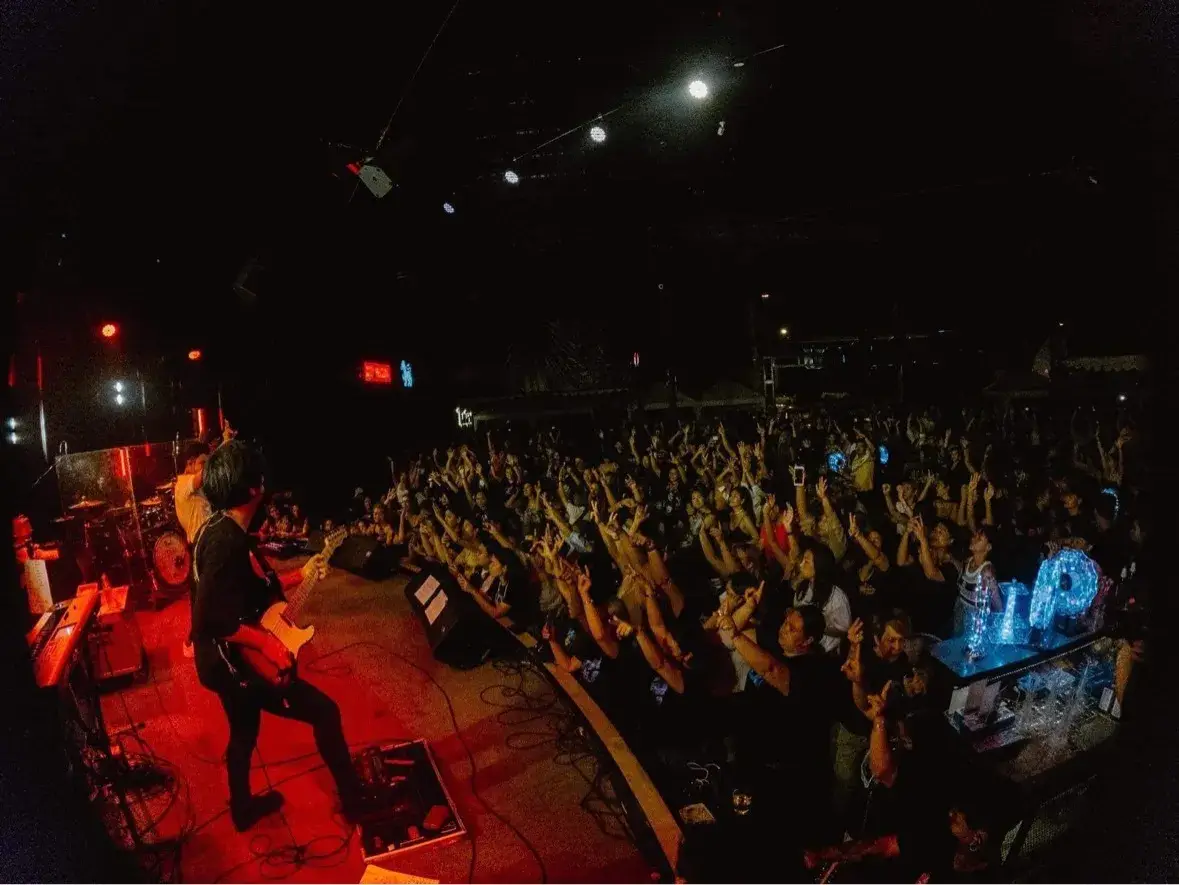

2023-EV-DC-NaimuangStation_02

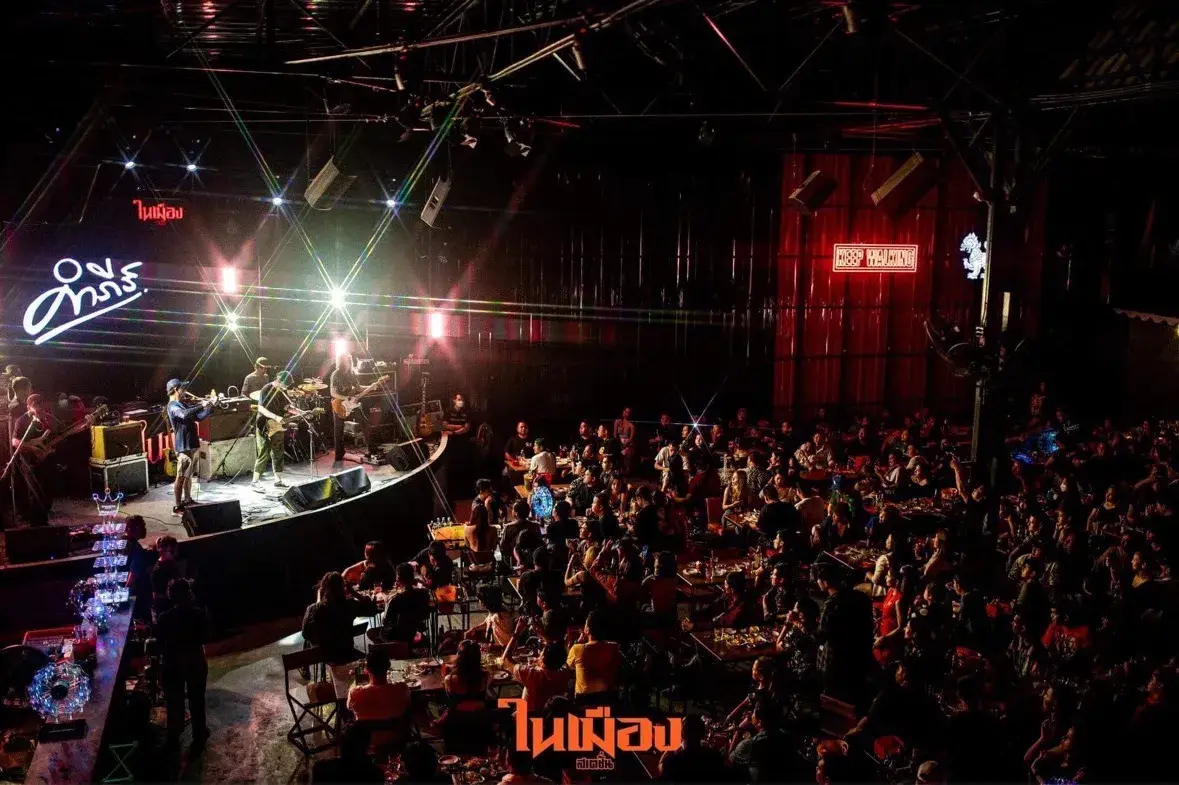

2023-EV-DC-NaimuangStation_03
The challenge

Cover the room, spare the neighbors

The brief asked for more than volume. The new system had to deliver professional sound quality in a compact format, keep its output contained inside the venue to minimize noise reaching neighboring properties, and still sound great at lower levels for daytime guests.

It also had to work as one rig for two very different jobs: background music for diners during the day, and full live sound for shows at night, all reliable and easy for restaurant staff to manage.

  • Professional sound quality in a compact format

  • Controlled coverage to minimize noise into neighboring properties

  • Great sound at low volume for daytime guests

  • Full output for live shows at night

  • Reliable and easy for staff to manage

The solution

Compact EKX and ZLX loudspeakers, Dynacord power and processing

The main PA pairs 4 passive Electro-Voice EKX-15 and 4 EKX-12 full-range loudspeakers covering the dining and audience area, with 4 EKX-18 subwoofers adding low-frequency support. 4 powered ZLX-12BT boxes serve as stage monitors. Both series feature Signal Synchronized Transducers (SST) technology, which allows a more compact enclosure, helps time-align the low- and high-frequency drivers, and fits a larger waveguide and port inside the box for enhanced pattern control and bass response.

Power and processing come from Dynacord L Series DSP amplifiers, designed for live and mobile applications: 3 L3600FD (2x 1800 W) and 2 L2800FD (2x 1400 W). Dynacord's remote control software lets Naimuang Station wirelessly manage and monitor settings such as volume and EQ without additional speaker processing, setting background music levels for daytime diners and higher output for live shows at night.

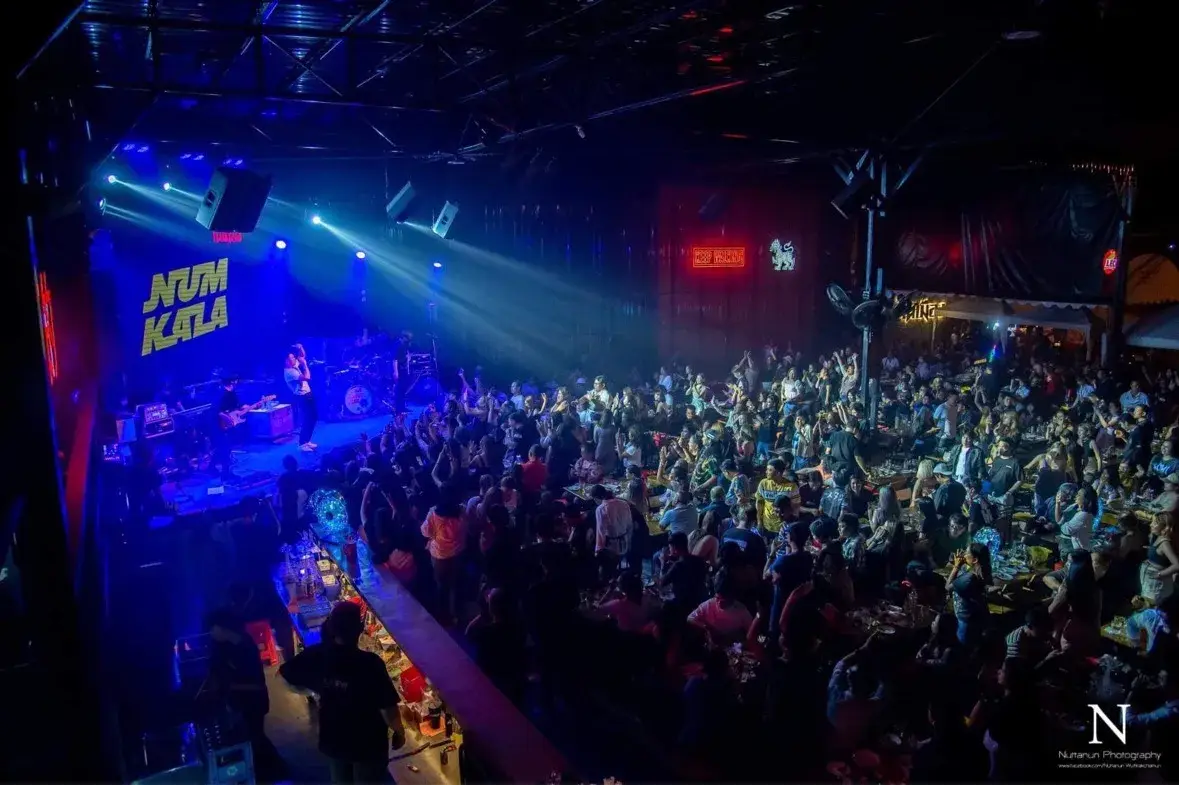

2023-EV-DC-NaimuangStation_05
The result

Background music by day, full live sound by night

Naimuang Station now runs modern, high-quality sound in a compact format. The audio can be adjusted to set the right ambience with background music for diners during the day, then pushed to higher output for live shows at night, all from the same system.

Quick, easy configuration completes the system, combining user-friendly convenience with professional performance while output stays contained in the venue.

  • One system for daytime BGM and nighttime live sound

  • Output contained in the venue, minimal noise next door

  • Volume and EQ managed wirelessly, no extra processing hardware

  • Quick, easy configuration for restaurant staff
