EVC-1152-64 15" speaker 60x45
EVC-1152-64 15" speaker 60x45

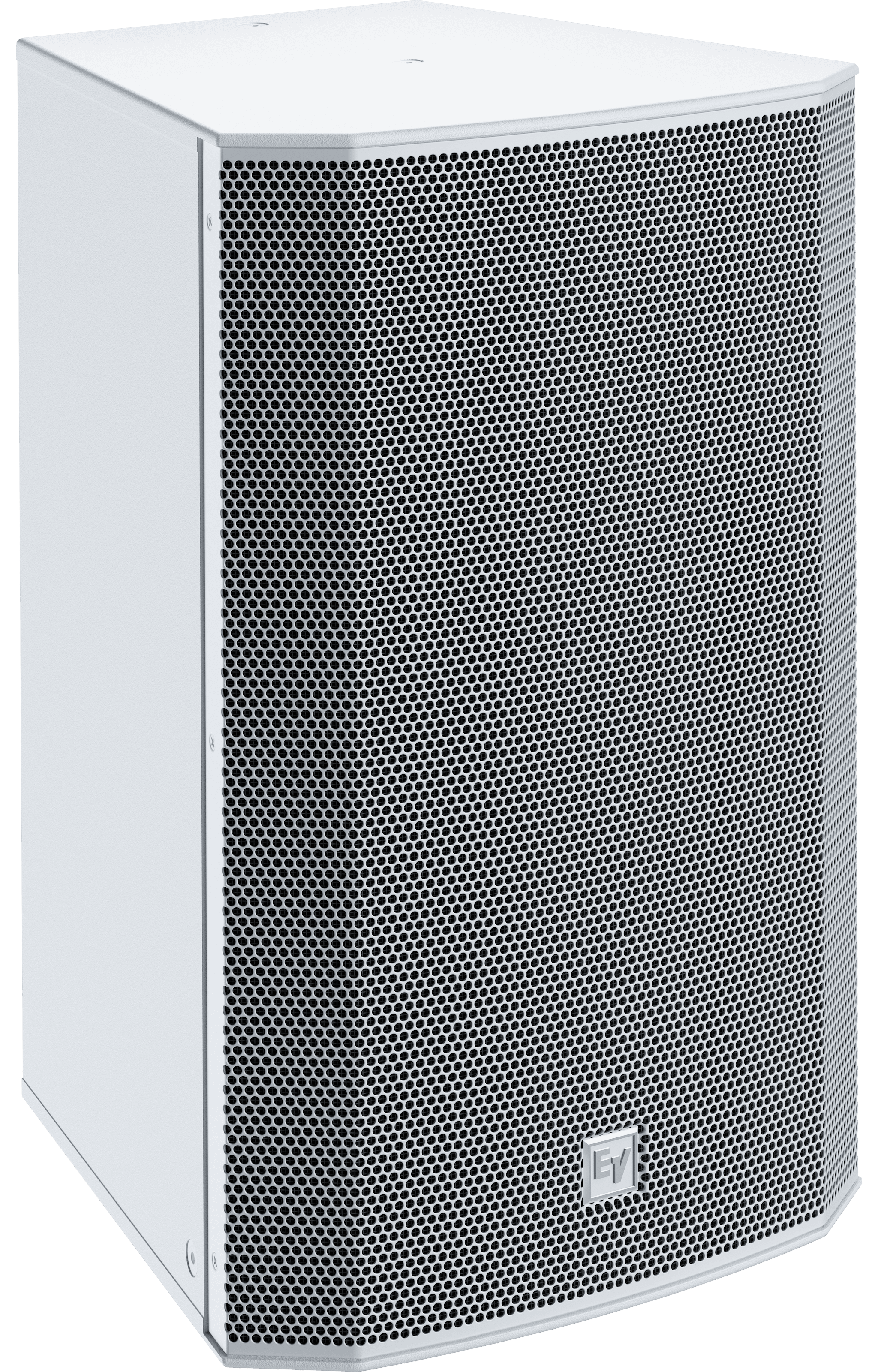

An indoor 15-inch two-way install loudspeaker in white with focused 60-by-45-degree coverage.
Features
Reach deeper into the room with a tighter pattern, in a finish that disappears. The EVC-1152-64W drives a 15-inch EVS-15M woofer through a 1.25-inch titanium-dome compression driver on a rotatable 60-by-45-degree waveguide for longer throw indoors. A 1.6 kHz fourth-order Linkwitz-Riley crossover keeps the vocal range defined off-axis, and the white enclosure recedes into a light ceiling. Larger worship rooms, gyms, ballrooms, showrooms — focus the coverage and fill the space cleanly.
- Throw farther, spill less — rotatable waveguide focuses coverage to 60 by 45 degrees.
- Bigger low end — 15-inch EVS-15M woofer for higher output and deeper reach indoors.
- Clean off the main axis — 1.6 kHz fourth-order Linkwitz-Riley crossover holds vocal definition.
- 70V/100V when you need it — add the TK-150 and patented ASC keeps bass and load stable.
- Blends in white — EVCoat enclosure, multiple M10 points, optional U-bracket, inputs to 10 AWG.
Specifications
Acoustic Performance
- Frequency Response
70 Hz - 21 kHz
- Frequency Range (-10 dB)
50 Hz - 25 kHz
- Coverage Angle
90 × 55
Transducers & Drivers
- LF transducer size (in)
EVS-15M
Impedance
- Nominal Impedance
8Ω
- Minimum Impedance
6.7
