EVC-1082-00 8" speaker 100x100
EVC-1082-00 8" speaker 100x100

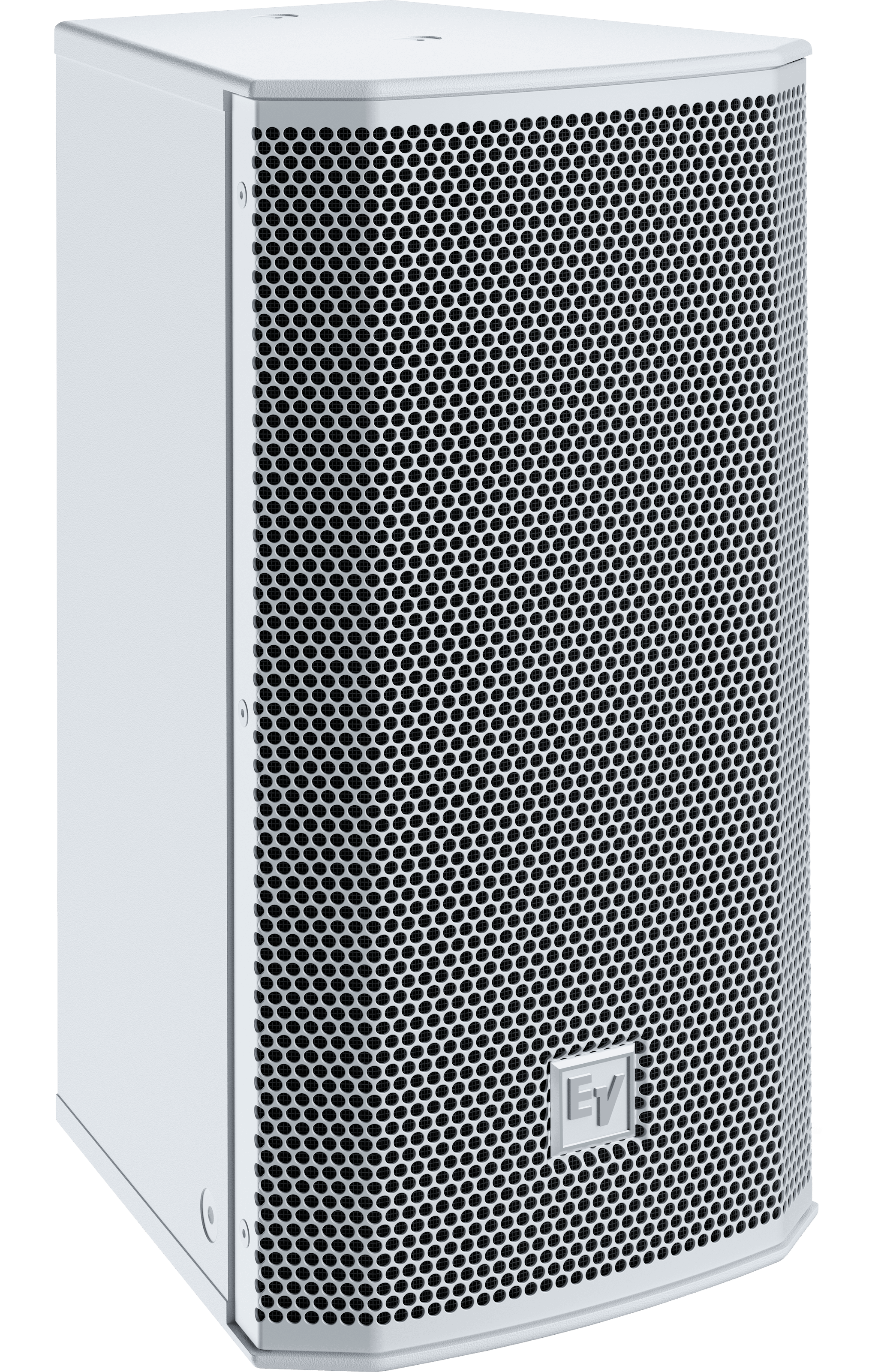

A compact 8-inch two-way install loudspeaker with 100° x 100° coverage, in white.
Features
Put even sound everywhere and let the box disappear. The EVC-1082-00 in white covers 100° x 100° from a 1.25-inch titanium compression driver on a rotatable waveguide over an 8-inch woofer, with a 24 dB/octave Linkwitz-Riley crossover for clean off-axis response. The plywood enclosure wears a durable EVCoat finish and flies on multiple M10 points. Add the TK-150 transformer and patented ASC holds the low end on 70 V/100 V. Retail, gallery, worship — wide and discreet.
- Cover more with fewer boxes — rotatable 100° x 100° waveguide spreads sound evenly.
- Blends in bright — white finish disappears against light walls and ceilings.
- Clean across the room — 24 dB/octave Linkwitz-Riley crossover sharpens off-axis response.
- Keep the low end on a line — optional TK-150 transformer engages patented ASC on 70 V/100 V.
- Fly or mount — multiple M10 points plus optional U-bracket and pan/tilt wall mount.
Specifications
Acoustic Performance
- Frequency Response
75 Hz - 21 kHz
- Frequency Range (-10 dB)
55 Hz - 25 kHz
- Coverage Angle
90 × 60
Transducers & Drivers
- LF transducer size (in)
EVS-2008
Impedance
- Nominal Impedance
8Ω
- Minimum Impedance
6
