100 Hz – 20 kHz (−3 dB); 75 Hz – 20 kHz (−10 dB)
40 W continuous (160 W peak); 110° × 110° coverage
IP54; T version taps 70/100 V lines

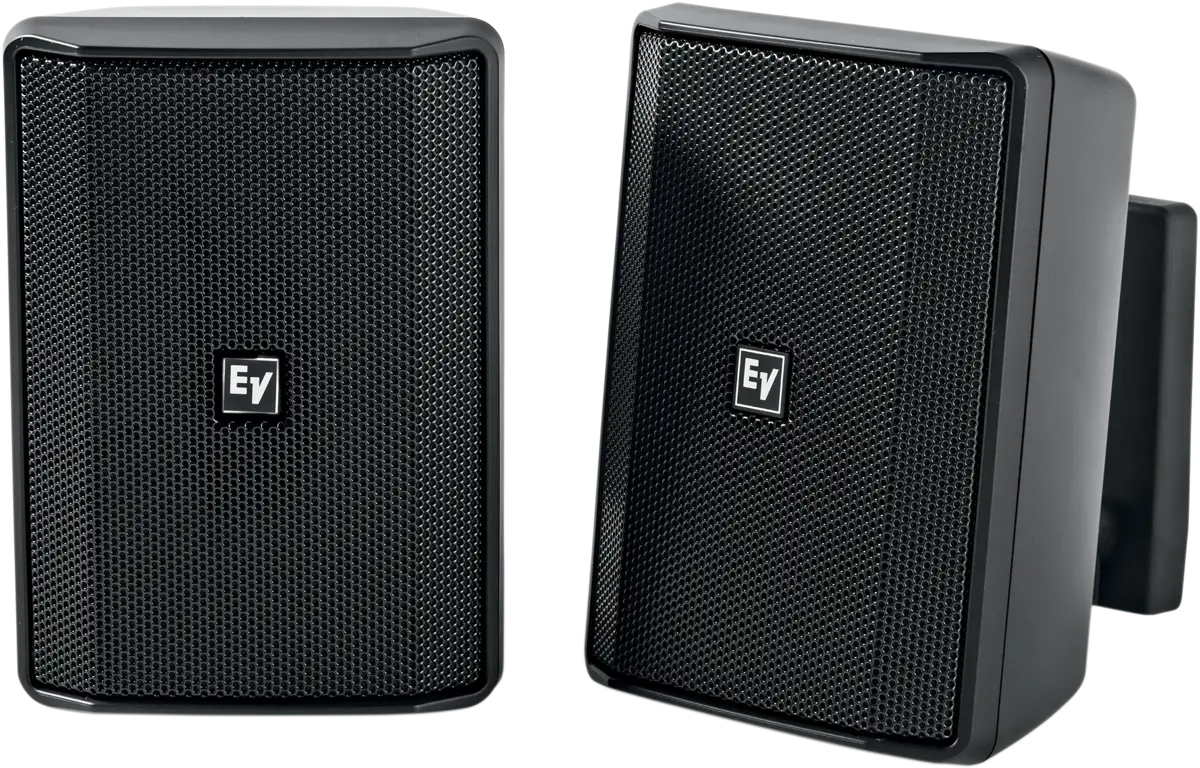

EVID-S4.2 — 4″ Cabinet
The compact starting point for distributed music.
Small enough to disappear over a doorway, voiced like the rest of the family.
For: retail · cafés · offices
Start here · 4″ · 8 Ω or 70/100 V · IP54
EVID-S5.2 — 5″ Cabinet
The all-rounder: more low end for rooms where music leads.
The step up when 4-inch cabinets start working too hard.
85 Hz – 20 kHz (−3 dB); 60 Hz – 20 kHz (−10 dB)
75 W continuous (300 W peak)
T version for 70/100 V lines; black or white pairs
For: restaurants · shops · lobbies
5″ · 75 W · 8 Ω or 70/100 V
EVID-S5.2X — 5″ All-Weather
The one that stays outside: full IP65 weatherization in the same 5-inch voice.
Terraces, pool decks, and concourses get the indoor sound without the indoor worry.
90 Hz – 20 kHz (−3 dB); 55 Hz – 20 kHz (−10 dB)
75 W continuous (300 W peak)
IP65-rated for full outdoor exposure
For: terraces · pools · concourses
IP65 · 70/100 V · Outdoor

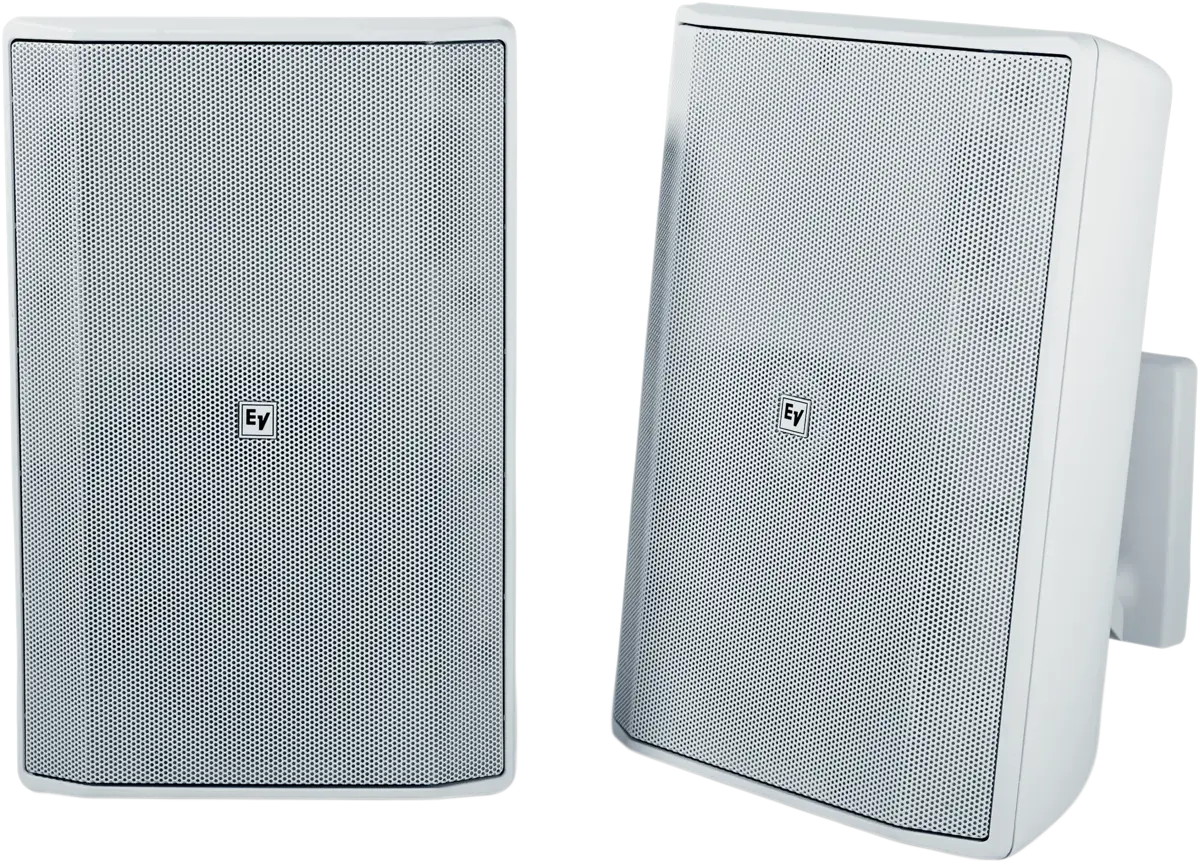

EVID-S8.2 — 8″ Cabinet
The big cabinet for big rooms.
When the space opens up, the 8-inch keeps level and low end without a subwoofer at every corner.
The largest EVID-S full-range cabinet
8-ohm and 70/100 V transformer versions, black or white
Voiced to match the smaller EVID-S cabinets
For: gyms · showrooms · large rooms
8″ · 8 Ω or 70/100 V · Pairs

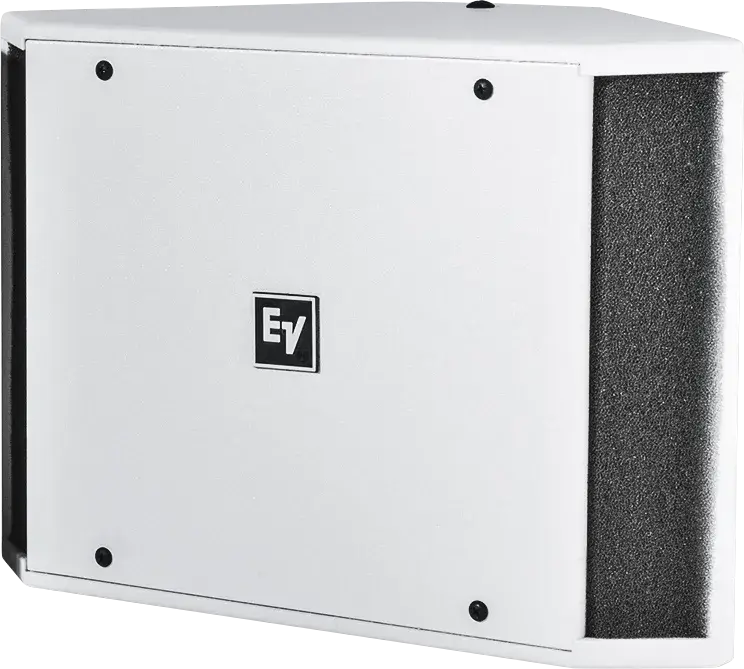

EVID-S Subwoofers — S10.1D & S12.1
The foundation: cabinet subwoofers that anchor music systems.
Add one where the room dances — the satellites keep their clarity, the sub carries the weight.
S10.1D dual-10: 33 Hz – 500 Hz (−10 dB), 400 W continuous (1,600 W peak)
S12.1: 40 Hz – 140 Hz, 200 W continuous, 127 dB max SPL
Match with any EVID-S or EVID ceiling system
For: bars · fitness studios · music-led venues
2×10″ or 12″ · Reach to 33 Hz
