CEILING SPEAKERS

EVID-EC

The essential ceiling series — cost-effective 3″ to 8″ models, including an EVAC-certified option.

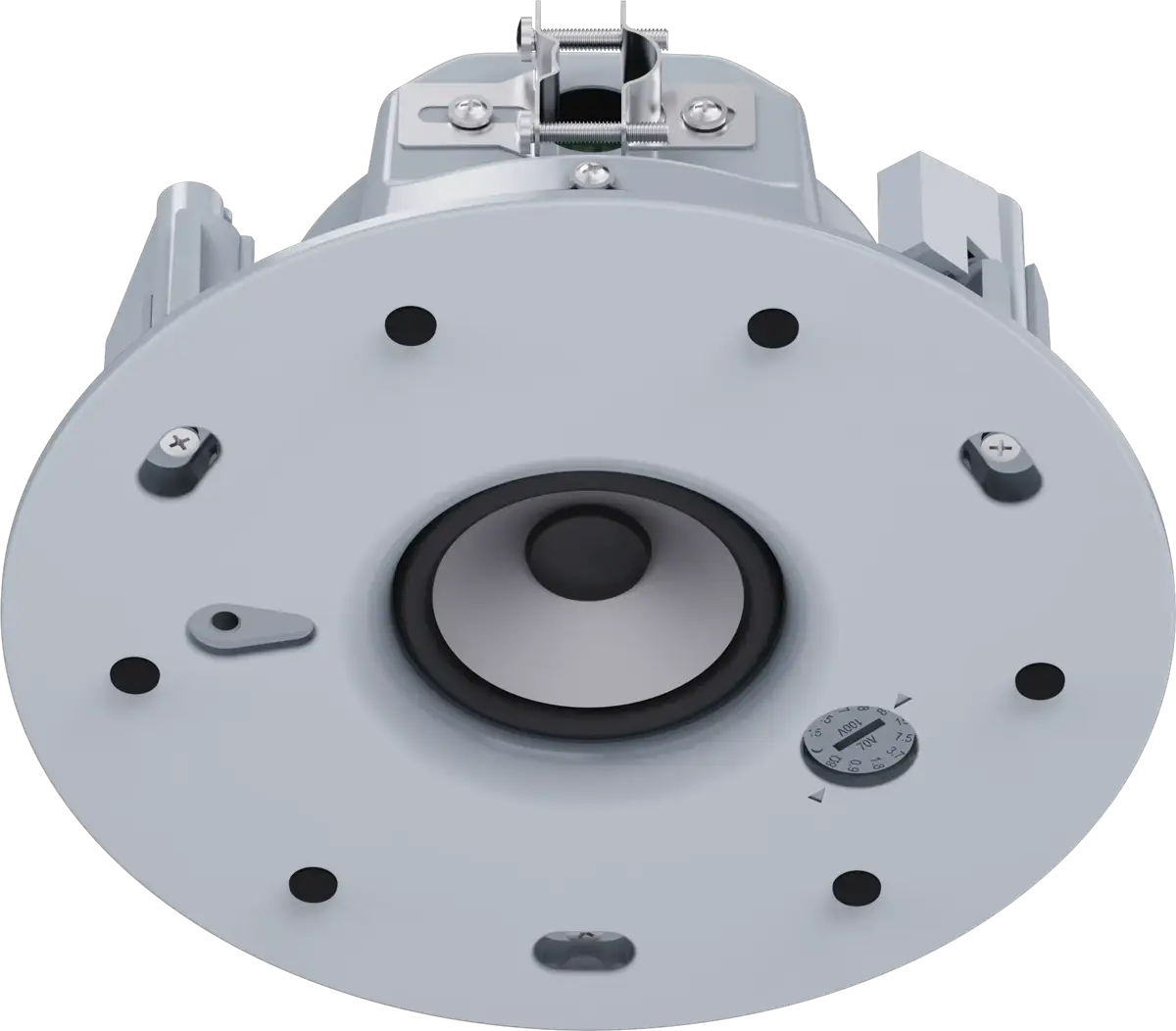

EVID-EC3.1 — 3″ Essential Ceiling

The essential wide-coverage can for low ceilings.

135° of conical coverage means fewer openings per corridor.

  • 90 Hz – 19 kHz (−10 dB); 100 dB max SPL

  • 70 V taps to 15 W; 8 Ω low-Z

  • IP45; UL 1480A / UL 2043 safety ratings

For: corridors · washrooms · small rooms

135° conical · 15 W taps · IP45
See the EC3.1
EV_EVID-EC3.1_Angled_Front_GrilleOff

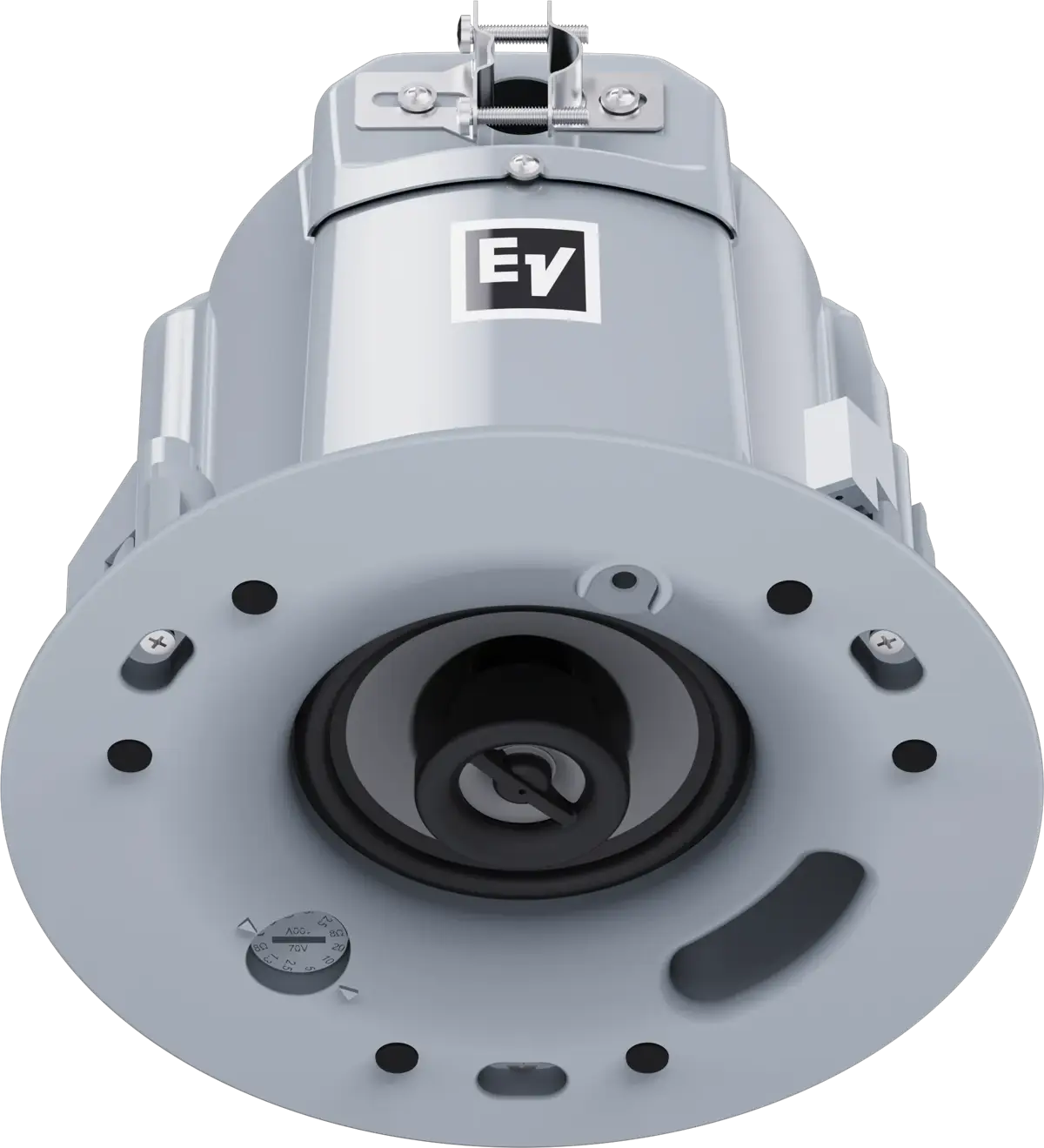

EVID-EC4.2 — 4″ Essential Ceiling

The everyday four-inch for paging and background music.

The essential range's sweet spot of coverage and cost.

  • 80 Hz – 20 kHz (−10 dB); 106 dB max SPL

  • 130° conical coverage

  • 70 V taps to 20 W; 8 Ω low-Z

For: offices · retail · reception

130° conical · 20 W taps
See the EC4.2
EV_EVID-EC4.2_Angled_Front_GrilleOff

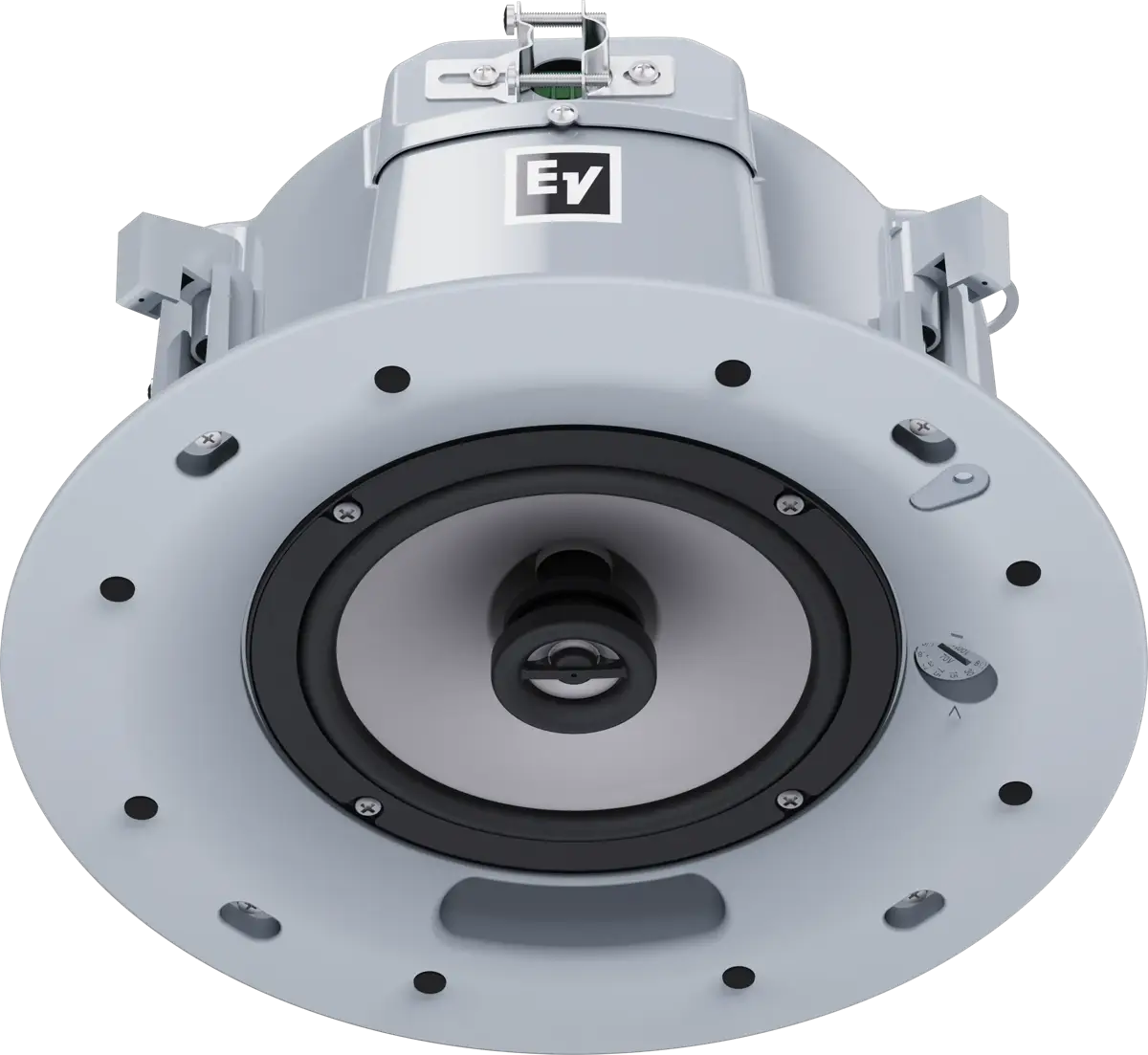

EVID-EC6.2 — 6.5″ Essential Ceiling

The essential mid-size — with a certified evacuation version.

The EC6.2E variant carries EVAC duty where regulations require it.

  • 80 Hz – 20 kHz (−10 dB); 110 dB max SPL

  • 70 V taps to 30 W; 110° conical

  • EC6.2E EVAC version for voice-evacuation systems

For: malls · schools · transport

110° · 30 W taps · EVAC option
See the EC6.2
EV_EVID-EC6.2_Angled_Front_GrilleOff

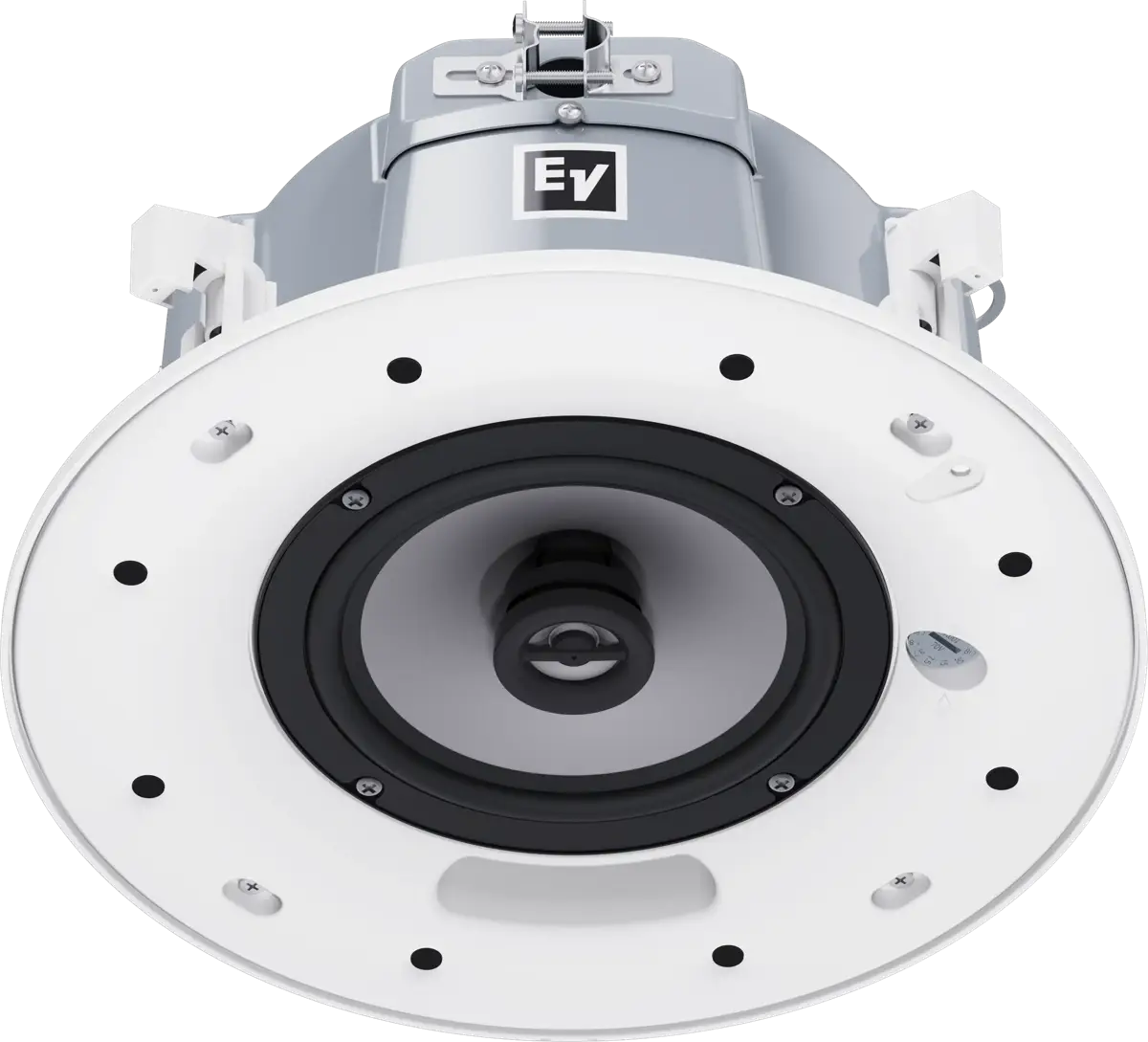

EVID-EC6.2E — 6.5″ EVAC Ceiling

The EVAC version of the EC6.2 for voice-alarm and life-safety installations, in the same essential ceiling format.

110° · 30 W taps · EVAC option
See the EC6.2E
EV_EVID-EC6.2E_Angled_Front_GrilleOff

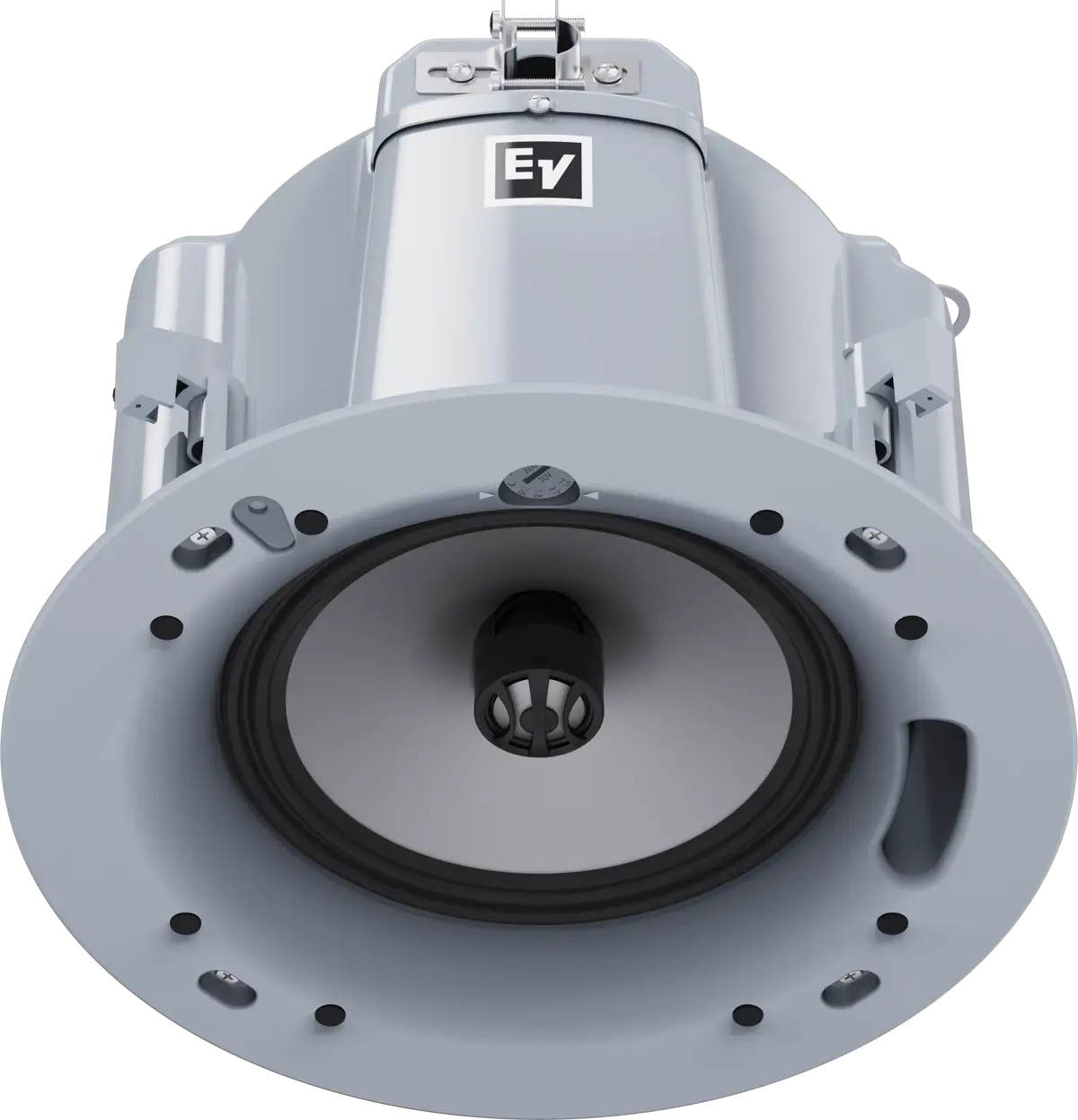

EVID-EC8.2 — 8″ Essential Ceiling

The largest essential can for wide spacing.

Fewer openings, more coverage per point.

  • The largest EC-series model

  • 4-pin Euroblock, input + pass-through

  • Voiced with the EC and C-G2 ranges

For: warehouses · gyms · big-box retail

8″ · Essential range
See the EC8.2
EV_EVID-EC8.2_Angled_Front_GrilleOff
