EVF G2 Front Load 15"
EVF/EVH G2 Series

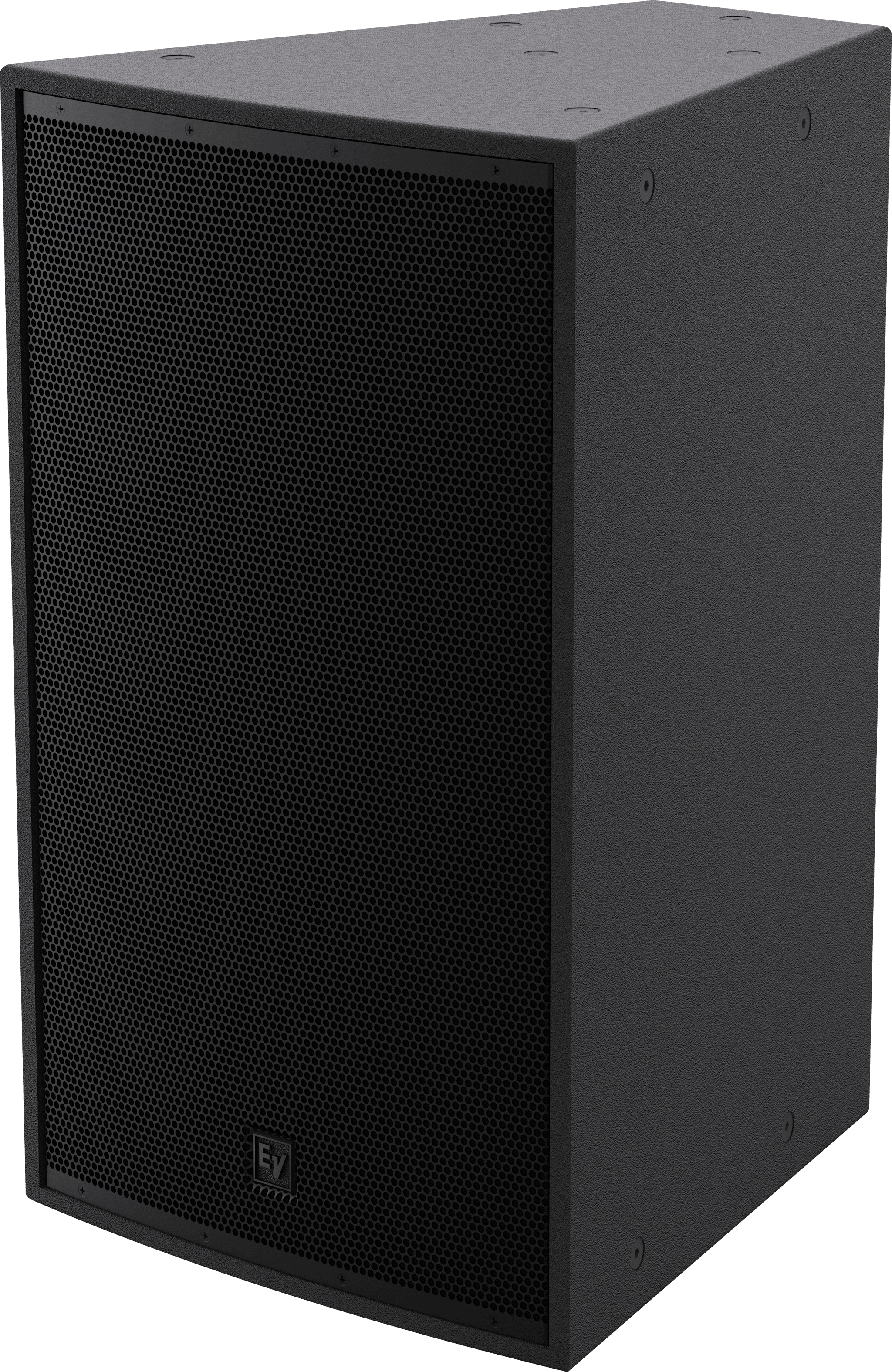

EVF-15 G2
Front-loaded 15-inch point source reaching 40 Hz — full-range mains without leaning on subwoofers.
The G2 generation rebuilds the Electro-Voice point-source install range from the inside out. New in-house EV transducers, low-loss crossovers, and EV's highest-performance HF horns sit in the same footprint as the first generation, while new low-latency FIR presets deliver flat phase response with under 10 ms of system latency. The updated grille withstands high SPL even when wet, the enclosure is fully front-serviceable, and a single-step polyurea finish keeps white cabinets UV-stable outdoors.
The EVF-15 G2 steps up to a front-loaded 15-inch design that reaches 40 Hz (−10 dB) — full-range mains for mid-size rooms without adding subwoofers. Four coverage patterns (60°×40°, 60°×60°, 90°×50°, 90°×90°) carry 117 dB linear and up to 136 dB peak output (AES75) from 400 W continuous power handling, at 38 kg per cabinet.
What the EVF-15 G2 brings
Four coverage patterns
60°×40°, 60°×60°, 90°×50°, and 90°×90° with matched voicing across the G2 family.
Reach to 40 Hz
Front-loaded 15-inch low end runs full-range in mid-size rooms — no subwoofer required.
G2 acoustics
New in-house transducers, low-loss crossovers, and EV's highest-performance HF horns — in the first generation's footprint.
FIR-ready processing
Low-latency FIR presets with flat phase response; system latency under 10 ms.
Weatherized options
IP55 fully-weatherized versions handle full exposure, including high-salt marine air (moisture cover + 5° down-tilt).
Front-serviceable
Wet-rated grille with front service access; single-step polyurea finish in RAL9005 black or UV-stable RAL9003 white.
Case study
Built for the room

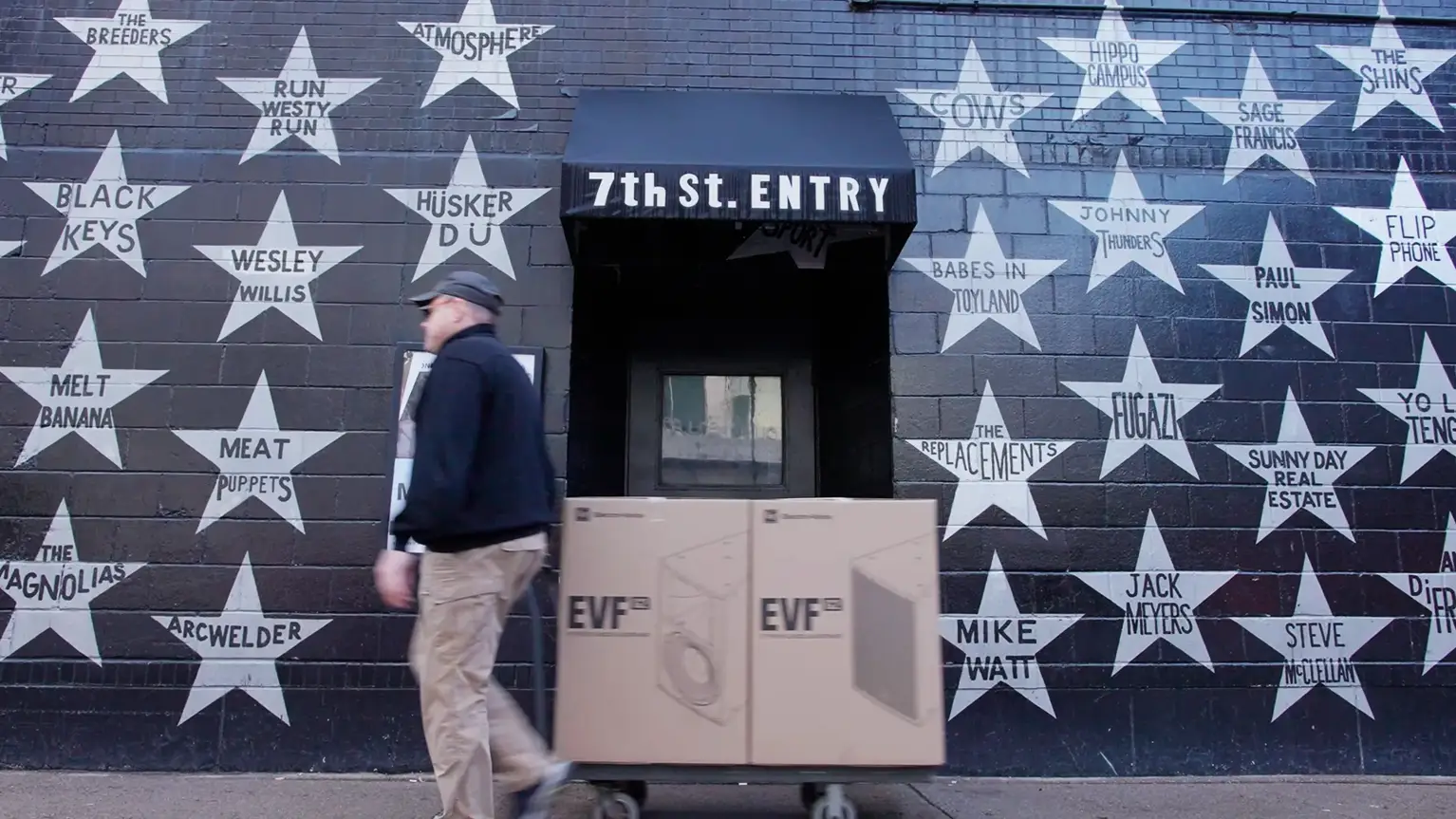

At 7th Street Entry, a historic club got a system built for the room: EVF G2 loudspeakers driven by Dynacord iX amplifiers. The smaller G2 footprint cleaned up sightlines, and the new coverage patterns gave engineers more consistent sound across the floor.
Frequency response (−3 dB): 50 Hz – 18 kHz · range (−10 dB): 40 Hz – 20 kHz
Max SPL (AES75): 117 dB linear / 135–136 dB peak, by pattern
Power handling: 400 W continuous / 800 W program
Coverage patterns: 60°×40° · 60°×60° · 90°×50° · 90°×90°
Weight: 38 kg · RAL9005 black / RAL9003 white · IP55 weatherized versions
All figures from the EVF-15 G2 engineering data sheet.
Features
Wash a wide room with full-range, full-bodied sound. The EVF-15/99 opens to a square 90° by 90° pattern over a 15-inch low end — broad near-field coverage with weight behind it. It carries the full EVF G2 redesign: new in-house EV transducers, low-loss crossovers, EV's highest-performance HF horns, and flat-phase FIR presets under 10 ms. Wide low-ceiling rooms, clubs, multipurpose halls that need real bottom — short throw, wide spread, no thin spots. IP55 with the cover for outdoor installs.
- Wide square 15 — 90° by 90° pattern with 15-inch low-end weight.
- Built new for G2 — in-house EV transducers and low-loss crossovers.
- Tight timing — flat-phase FIR presets with under 10 ms of system latency.
- Two-way full range — redesigned high-output 15-inch for broad rooms.
- Weather-ready — IP55 rating with the moisture-resistant cover fitted.
Specifications
Acoustic Performance
- Frequency Response
1k
- Frequency Range (-10 dB)
40 Hz - 20 kHz
- Coverage angle (V)
40
- Coverage Angle
90 × 90
Transducers & Drivers
- LF transducer size (in)
15
Power & Amplification
- Power handling (continuous) (W)
400
