EVF G2 Front Load 12"
EVF/EVH G2 Series
EVF-12 G2
Compact front-loaded 12-inch point source in five coverage patterns — the workhorse of the G2 install range.
The G2 generation rebuilds the Electro-Voice point-source install range from the inside out. New in-house EV transducers, low-loss crossovers, and EV's highest-performance HF horns sit in the same footprint as the first generation, while new low-latency FIR presets deliver flat phase response with under 10 ms of system latency. The updated grille withstands high SPL even when wet, the enclosure is fully front-serviceable, and a single-step polyurea finish keeps white cabinets UV-stable outdoors.

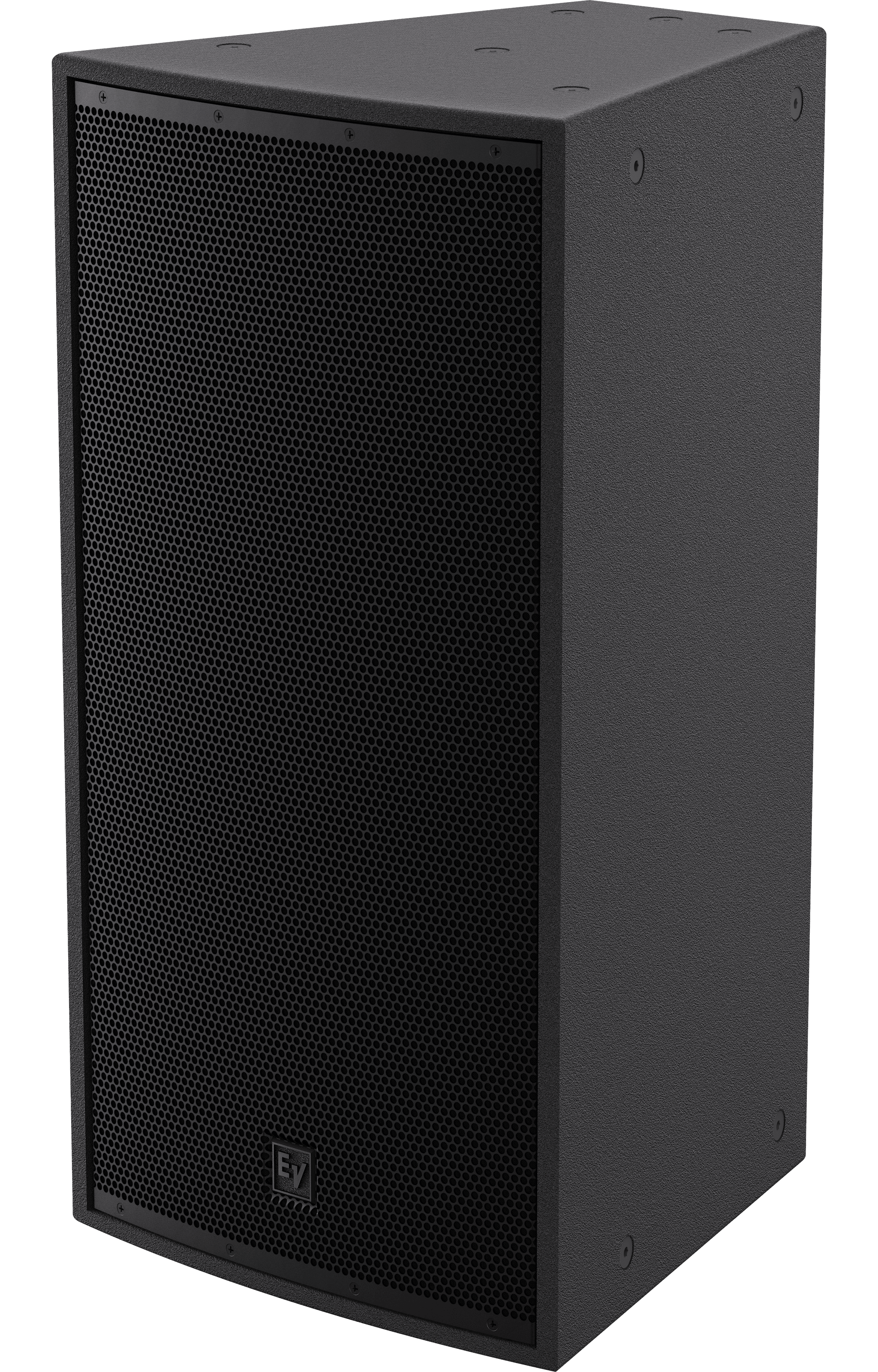

The EVF-12 G2 is the compact front-loaded model: a two-way 12-inch design reaching 48 Hz (−10 dB) with 400 W continuous power handling, available in five coverage patterns — 60°×40°, 60°×60°, 90°×50°, 90°×90°, and a wide 120°×60° unique to the 12. At 30.5 kg with 22 M10 hard points, it hangs where larger boxes can't: performing arts spaces, houses of worship, theaters, and high-SPL music venues.
What the EVF-12 G2 brings
Five coverage patterns
Swap from 60°×40° up to a wide 120°×60° — the widest pattern in the G2 range — with matched voicing.
G2 acoustics
New in-house transducers, low-loss crossovers, and EV's highest-performance HF horns — in the first generation's footprint.
FIR-ready processing
Low-latency FIR presets with flat phase response; system latency under 10 ms.
Install-ready connections
Removable 10 AWG Euroblock plus built-in NL4; 22 M10 hard points for suspension.
Weatherized options
IP55 fully-weatherized versions handle full exposure, including high-salt marine air (moisture cover + 5° down-tilt).
Front-serviceable
Wet-rated grille with front service access; single-step polyurea finish in RAL9005 black or UV-stable RAL9003 white.
Frequency response (−3 dB): 57 Hz – 18 kHz · range (−10 dB): 48 Hz – 20 kHz
Power handling: 400 W continuous / 800 W program (8 Ω nominal)
Coverage patterns: 60°×40° · 60°×60° · 90°×50° · 90°×90° · 120°×60°
Peak input voltage: 130 V LF / 62 V HF
Connections: 10 AWG Euroblock + NL4
Rigging: 22× M10 hard points
769 × 407 × 417 mm · 30.5 kg · RAL9005 black / RAL9003 white · IP55 weatherized versions
All figures from the EVF-12 G2 engineering data sheet.
Case study
Built for the room

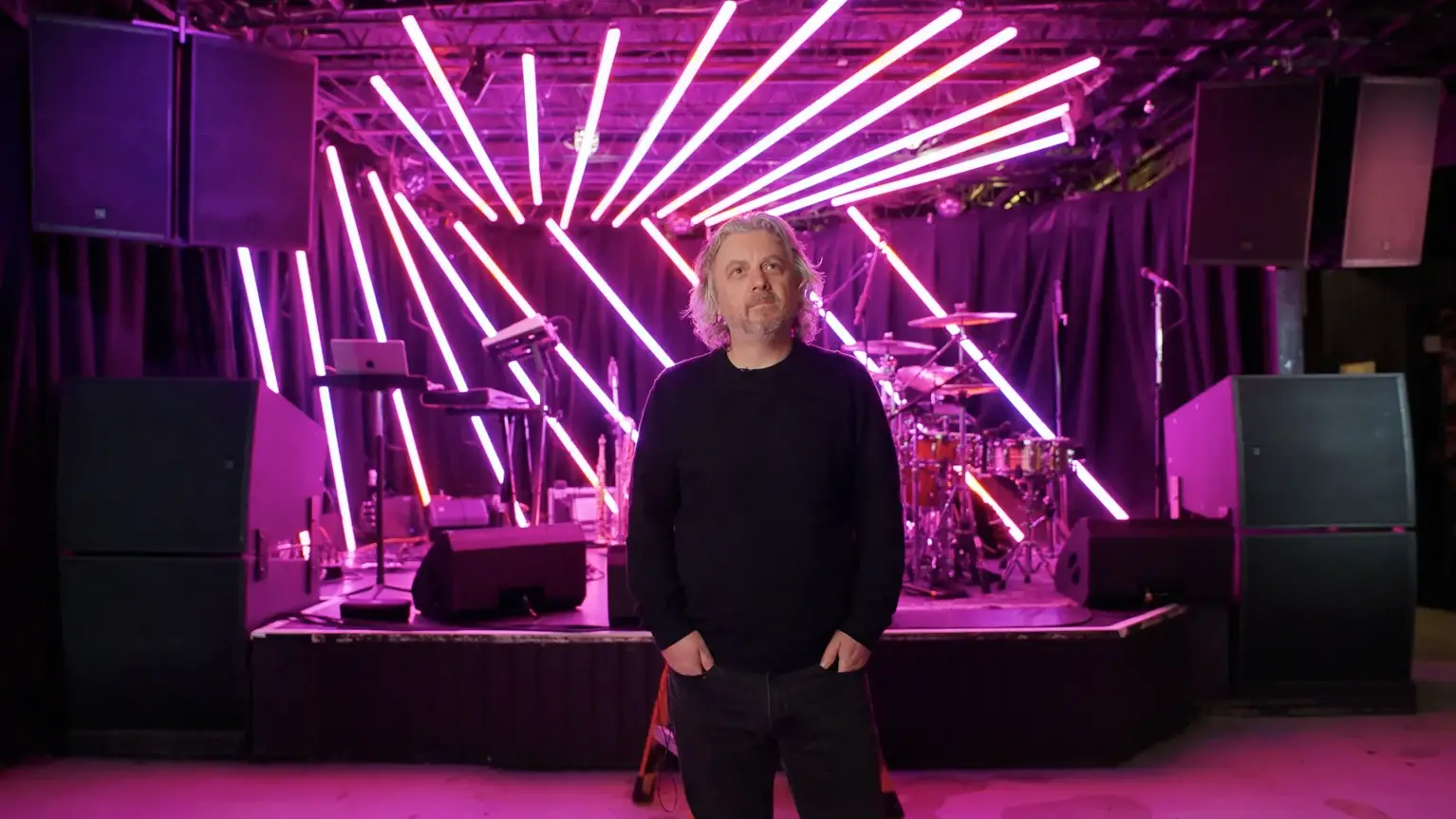

At 7th Street Entry, a historic club got a system built for the room: EVF G2 loudspeakers driven by Dynacord iX amplifiers. The smaller G2 footprint cleaned up sightlines, and the new coverage patterns gave engineers more consistent sound across the floor.
Features
Cover the front rows and the far walls from one box. The EVF-12/126 spreads a 120° by 60° pattern from a redesigned two-way 12-inch — new in-house EV transducers, low-loss crossovers, and EV's highest-performance HF horns yet. Flat-phase FIR presets keep system latency under 10 ms. Wide, shallow rooms, front-fill, under-balcony — where the audience is spread side to side, this is the angle. Add the moisture-resistant cover and it goes IP55 outdoors.
- Widest spread — 120° by 60° pattern for broad, shallow rooms and front-fill.
- Redesigned from scratch — new in-house EV transducers and low-loss crossovers.
- Tight timing — flat-phase FIR presets with under 10 ms of system latency.
- Real power — 400 W continuous, 800 W program, 8Ω, down to 48 Hz.
- Take it outside — IP55 weatherized option with the moisture-resistant cover fitted.
Specifications
Acoustic Performance
- Max SPL
134
- Frequency Response
1k
- Frequency Range (-10 dB)
48 Hz - 20 kHz
- Coverage angle (V)
40
- Coverage Angle
120 × 60
Power & Amplification
- Power handling (continuous) (W)
400 W
