EVC-1122-64 12" speaker 60x45
EVC-1122-VIW
FRONT ROW TO BACK. ONE BOX.

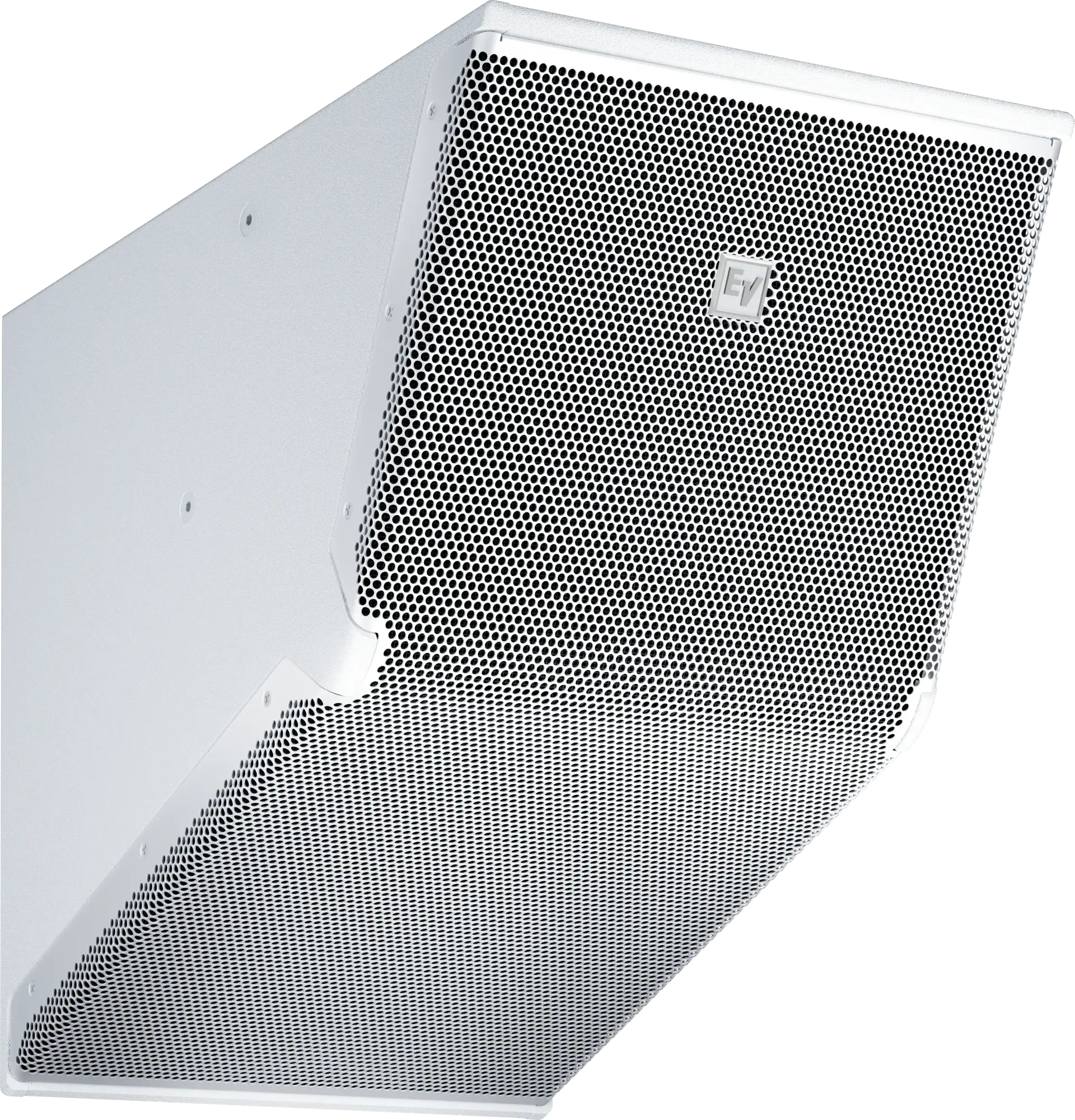

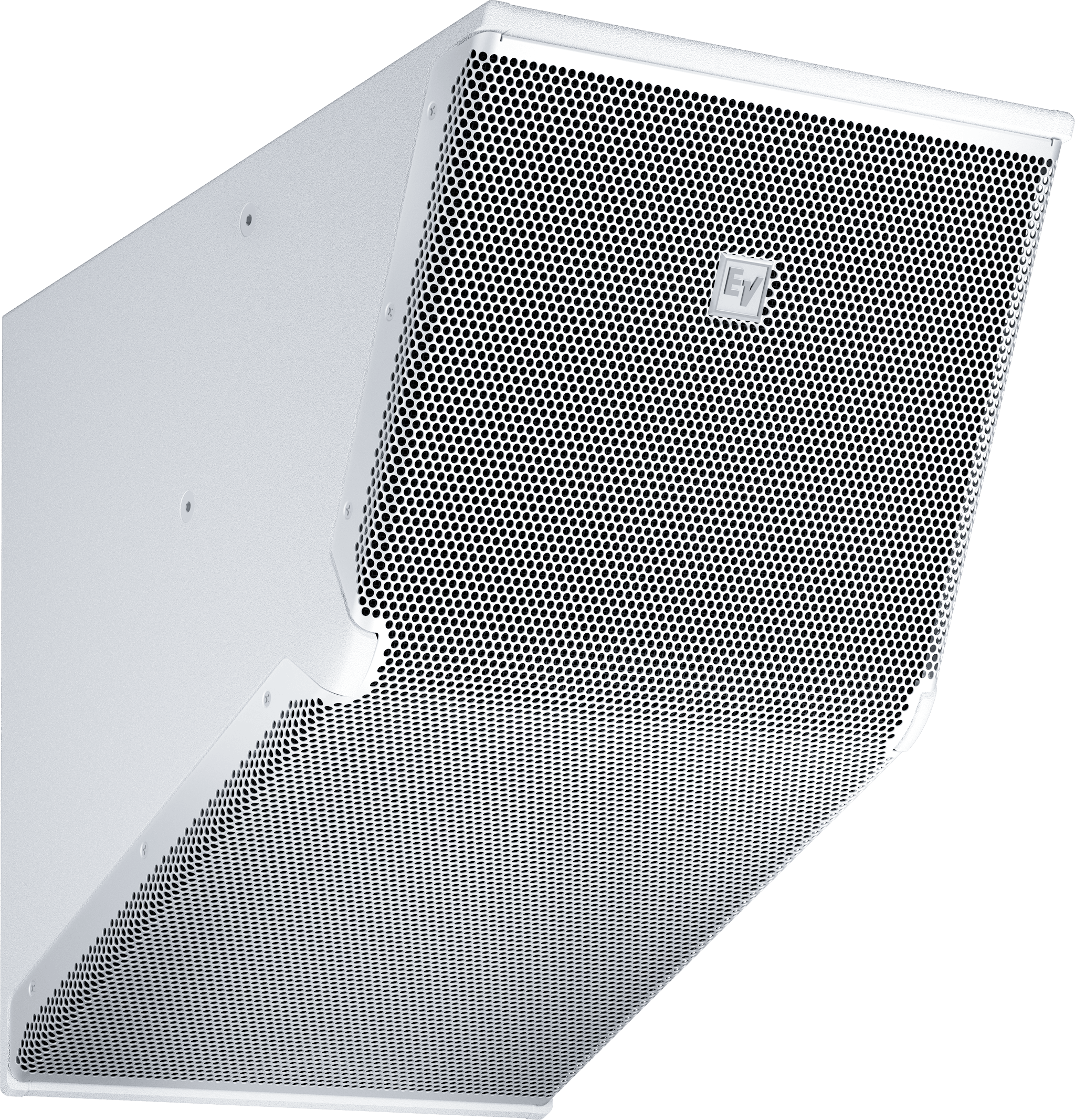

A variable-intensity 12-inch install loudspeaker in white that covers a long room evenly.
EVC-1122-64 12" speaker 60x45
A variable-intensity 12-inch install loudspeaker in white that covers a long room evenly.
Blanket the floor from a single point, in a finish that disappears. The EVC-1122-VIW angles its 12-inch woofer down and pairs it with an asymmetrical waveguide, so one box covers a rectangular audience with almost no level change front to back. A 1.6 kHz fourth-order Linkwitz-Riley crossover keeps speech crisp and foreground music clean. Galleries, white-ceiling worship spaces, atriums, showrooms — mount it high, set the angle, and the whole space sounds even.
Key features
Even level, front to back
variable-intensity design covers a defined rectangle from one loudspeaker.
Clear speech, real music
1.25-inch titanium-dome driver and 12-inch EVS-12M woofer handle both.
Set coverage by geometry
mounting height and tilt angle define the audience area you reach.
Distributed-line ready
add the TK-150 and patented ASC keeps low end stable across paralleled boxes.
Blends into the room
white EVCoat enclosure, three M10 points, optional ceiling or wall U-bracket.
Voiced for the family
tuned to complement EVF, EVH, and EVA models across the EVInnovation range.
Features
Blanket the floor from a single point, in a finish that disappears. The EVC-1122-VIW angles its 12-inch woofer down and pairs it with an asymmetrical waveguide, so one box covers a rectangular audience with almost no level change front to back. A 1.6 kHz fourth-order Linkwitz-Riley crossover keeps speech crisp and foreground music clean. Galleries, white-ceiling worship spaces, atriums, showrooms — mount it high, set the angle, and the whole space sounds even.
- Even level, front to back — variable-intensity design covers a defined rectangle from one loudspeaker.
- Clear speech, real music — 1.25-inch titanium-dome driver and 12-inch EVS-12M woofer handle both.
- Set coverage by geometry — mounting height and tilt angle define the audience area you reach.
- Distributed-line ready — add the TK-150 and patented ASC keeps low end stable across paralleled boxes.
- Blends into the room — white EVCoat enclosure, three M10 points, optional ceiling or wall U-bracket.
Specifications
Acoustic Performance
- Frequency Response
70 Hz - 22 kHz
- Frequency Range (-10 dB)
50 Hz - 25 kHz
- Coverage Angle
90 × 55
Transducers & Drivers
- LF transducer size (in)
EVS-12M
Impedance
- Nominal Impedance
8Ω
- Minimum Impedance
7
