Extreme cold down to -8°C and humidity up to 100%
Heavy rain, wind, fog, hail, and snow
Wide, even coverage across open outdoor areas
Live performances and religious activities from one system
Equipment transport to a 3143-meter summit
Fansipan Peak, Vietnam
Clear sound at 3,143 meters, whatever the weather
Fansipan Peak crowns the tallest mountain in Vietnam, 3143 meters above sea level. The visitor complex known as The Roof of Indochina spans traditional Buddhist temples, the world's longest three-line cable car system, a funicular railway, and viewing platforms that draw millions of tourists and travelers. The brief was simple to state and hard to deliver: full-range audio for live performances and religious activities, in weather that swings from heavy rain to hail and snow.
Case Study
Leisure / Attraction
Electro-Voice
Dynacord
Asia
Fansipan Peak, Vietnam
Clear sound at 3,143 meters, whatever the weather
Case Study
Leisure / Attraction
Electro-Voice
Dynacord
Asia
Fansipan Peak crowns the tallest mountain in Vietnam, 3143 meters above sea level. The visitor complex known as The Roof of Indochina spans traditional Buddhist temples, the world's longest three-line cable car system, a funicular railway, and viewing platforms that draw millions of tourists and travelers. The brief was simple to state and hard to deliver: full-range audio for live performances and religious activities, in weather that swings from heavy rain to hail and snow.
- Venue
- Fansipan Peak
- Location
- Fansipan, Vietnam
- Install partner
- Truong Thinh Sound - Light Equipment JSC
- Product highlights
- Electro-Voice X1i-212, X12i-128, EVF-1122D/96 · Dynacord IPX20:4, L3600FD
The venue
A visitor complex on The Roof of Indochina

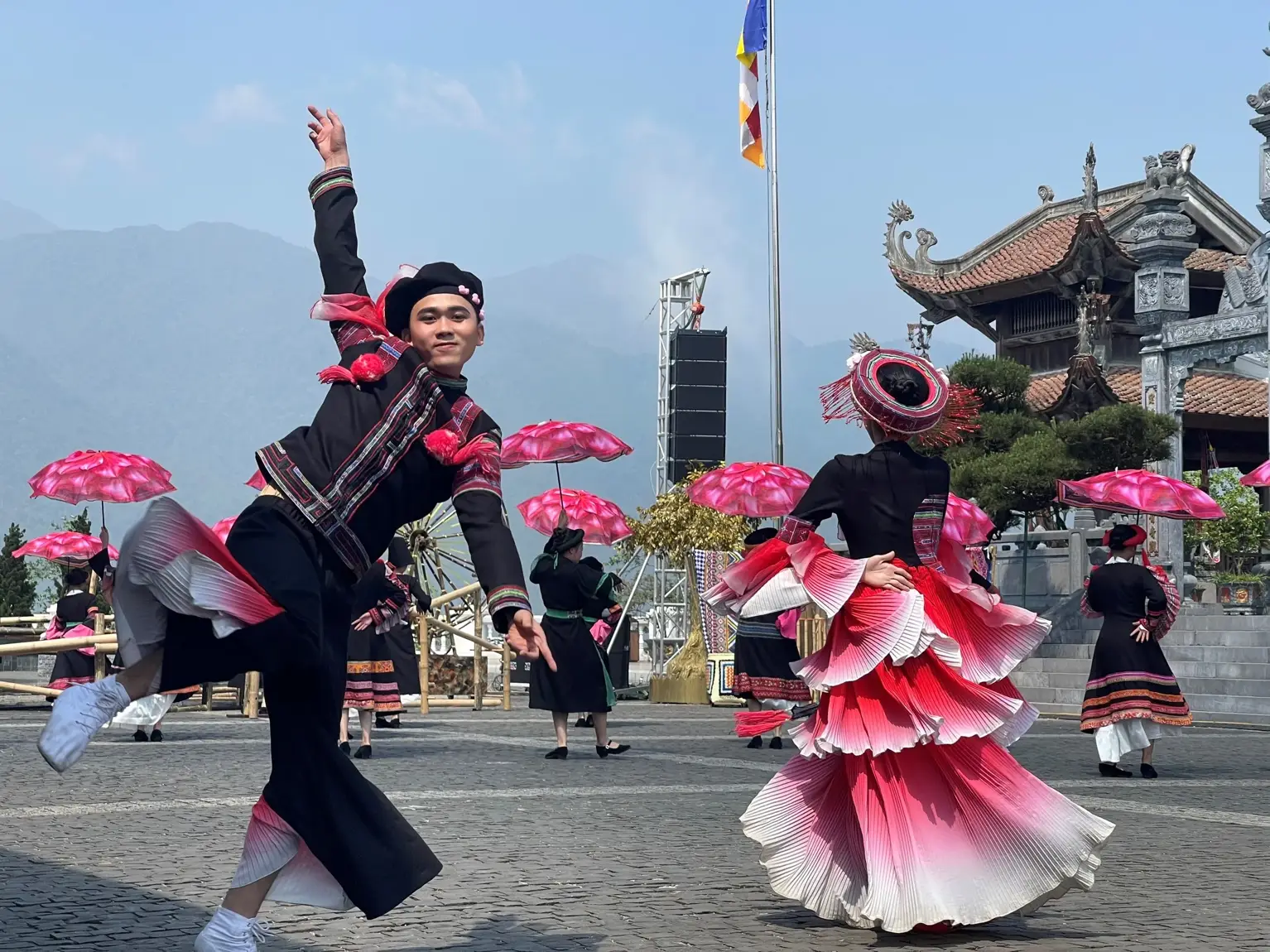

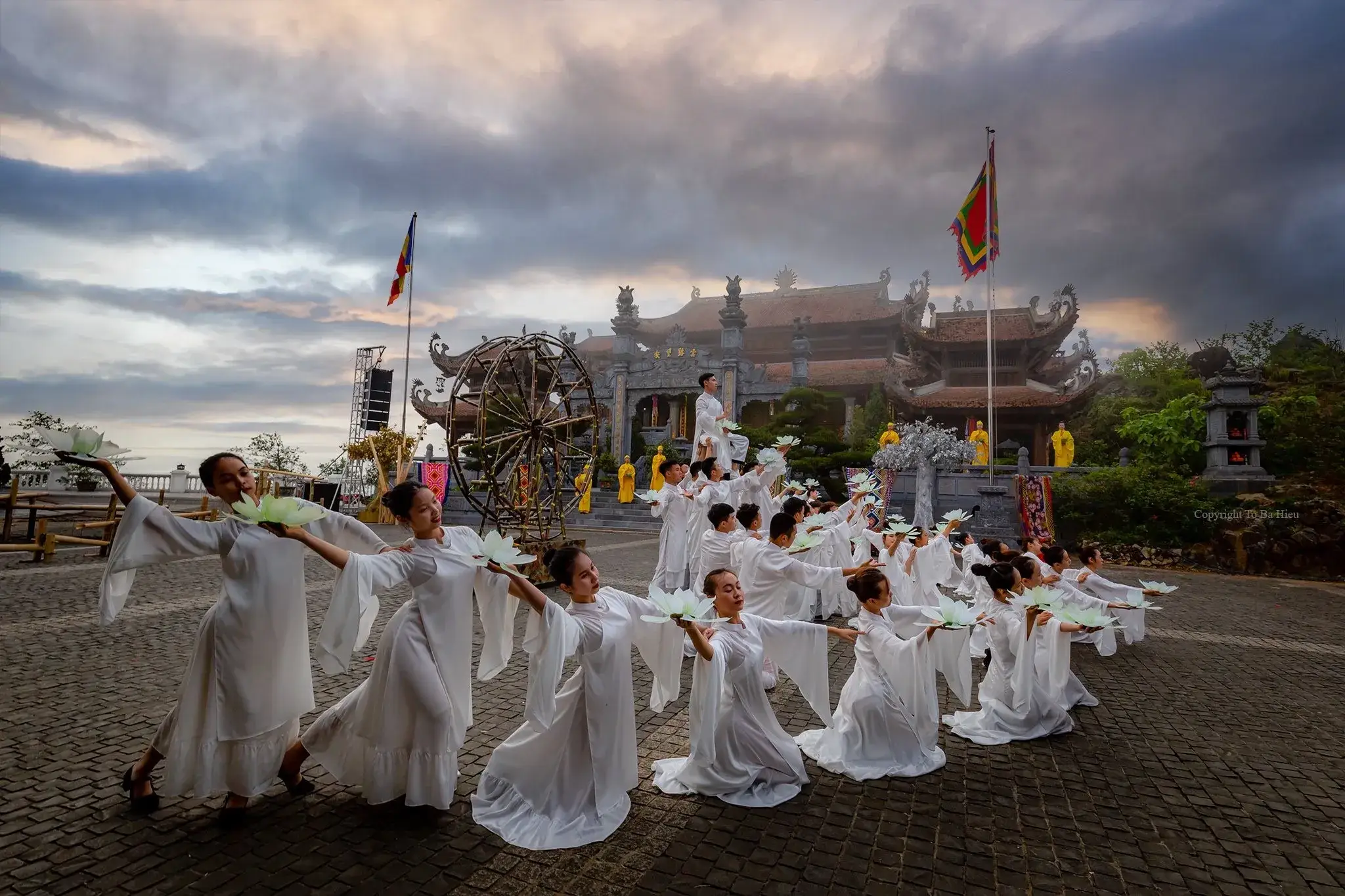

Fansipan Peak is an expansive religious and tourist attraction at the summit of Vietnam's tallest mountain. The complex features traditional Buddhist temples, the world's longest three-line cable car system, a funicular railway, and viewing platforms overlooking the surrounding mountain range and Hoàng Liên National Park. A year-round program of traditional dance performances and other festivities keeps the outdoor areas in constant use.
At 3143 meters above sea level, the site gives equipment no shelter. Temperatures drop to -8°C, humidity reaches 100%, and heavy rain, wind, fog, hail, and snow move through in every season. Any sound system installed here has to keep performing through all of it.
“We are very pleased with the professional audio systems by Electro-Voice and Dynacord operated on Fansipan, even in extreme weather conditions and at a height of more than 3100 meters.”
Phan Tat ThangVice President of Fansipan Sa Pa co., Ltd
The challenge
Cover an open mountaintop, then survive its weather
The complex needed wide, even coverage across its outdoor areas for the music that accompanies the year-round performances and religious activities. The same system had to withstand extreme cold down to -8°C, humidity up to 100%, and heavy rain, wind, fog, hail, and snow.
Getting the equipment up there was a challenge of its own. With the installation taking place at the top of the highest peak in the region, every component traveled to the site via the Guinness world record-holding cable car that carries tourists to the complex.
The solution
Fiberglass loudspeakers, weatherized and IP55-rated
Truong Thinh Sound - Light Equipment JSC recommended the fiberglass versions of all the EV loudspeakers, weatherized and IP55-rated for direct-exposure outdoor environments. A total of 20 X1i-212 12-inch two-way line-array modules deploy on mobile trussing anywhere around the complex, with array size selected according to the application, and 8 X12i-128 subwoofers carry the low end. Just 6 Dynacord IPX20:4 power amplifiers (4 x 5000 W) drive the entire X1i system.
At the very top of the peak, where the national flag of Vietnam is planted, 6 EVF-1122D/96 12-inch two-way full-range loudspeakers with a 90° x 60° rotatable waveguide design supply near-field and medium-throw coverage. A pair of Dynacord L3600FD amplifiers (2 x 1800 W) powers them, supporting national ceremonies at the summit.
- 20 Electro-Voice X1i-212 line-array loudspeakers
- 8 Electro-Voice X12i-128 subwoofers
- 6 Electro-Voice EVF-1122D/96 full-range loudspeakers
- 6 Dynacord IPX20:4 power amplifiers
- 2 Dynacord L3600FD power amplifiers
- Weatherized, IP55-rated fiberglass cabinets throughout
“Furthermore, without the valuable assistance from the enthusiastic and experienced team of Truong Thinh Sound – Light Equipment JSC, the project would have not been completed to this high standard.”
Phan Tat ThangVice President of Fansipan Sa Pa co., Ltd
The result
Concert sound at the summit, proven in every season
The system now handles the full range of elements that nature throws at it while delivering wide, even coverage for the music behind the year-round program of traditional dance performances and other festivities. It has already demonstrated its ability to withstand the harsh conditions at Fansipan Peak, from extreme cold to heavy rain, fog, hail, and snow.
For an attraction that draws millions of visitors, the outcome is an audio system that holds up in both sound quality and weather resistance, 3143 meters above sea level.
Wide, even coverage across the outdoor areas
Proven performance through cold, rain, wind, fog, hail, and snow
Mobile X1i-212 arrays sized to each application
Dedicated coverage for national ceremonies at the flag point
